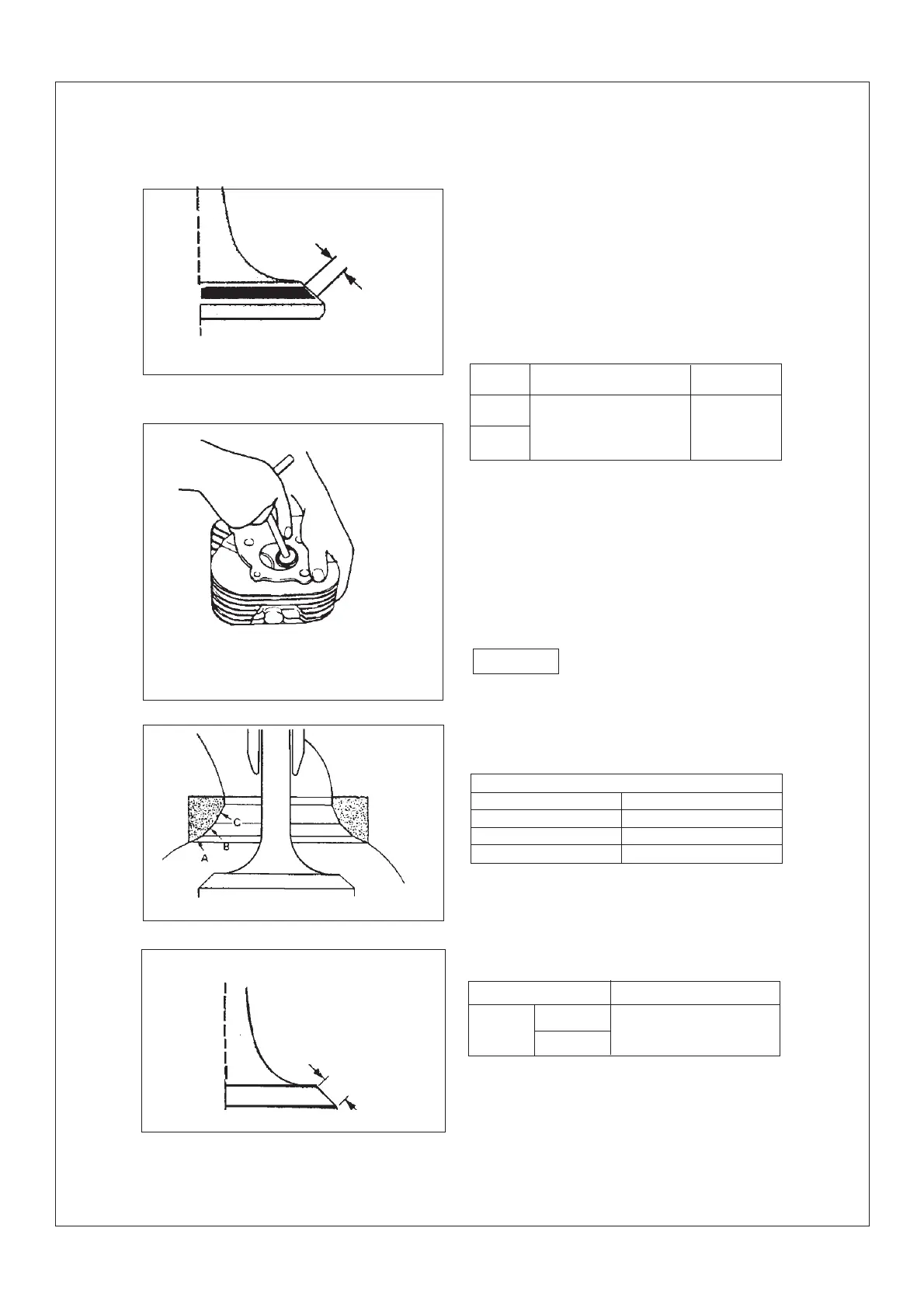

.Press the valve through valve guide pipe to
leave clear trace on the valves.
.Remove the valve from cylinder cover
.When the valve contacts with valve race, the
red lead is marked on the valve from vavle
race, Then can measure the contacting width
of valve and valve race.
Valve race correcting procedure
The contacting part A is in the middle of valve
face. But the contacting width is too wide.
.If the contacting width is too wide, too nar-
row or not in the middle, it is necessary to
recorrect valve race
4)Correct
.Valve race
Use reamers of30¡ã.45¡ã and60¡ã
Rotate the reamer with even force to avoid
cutting mark. And remove surplus part to get
ideal valve race.
Intake
Exhaust
Contactingwidth of valve
and valve race
Limit
0.9~1.1mm
(0.035~0.043mmin)
1.6mm
(0.063in)
Reamer used on each part
Part
A
B
C
Reamer
30¡ã
45¡ã
60¡ã
Reamer assy of valve race
Operate
lightly
Result
Reamer 30¡ã
Reamer 60¡ã
Reduce the contacting
width to 1.0mm(0.04 in)
Caution
- 158 -
