ATV 200 - Page 175

16.Crankshaft

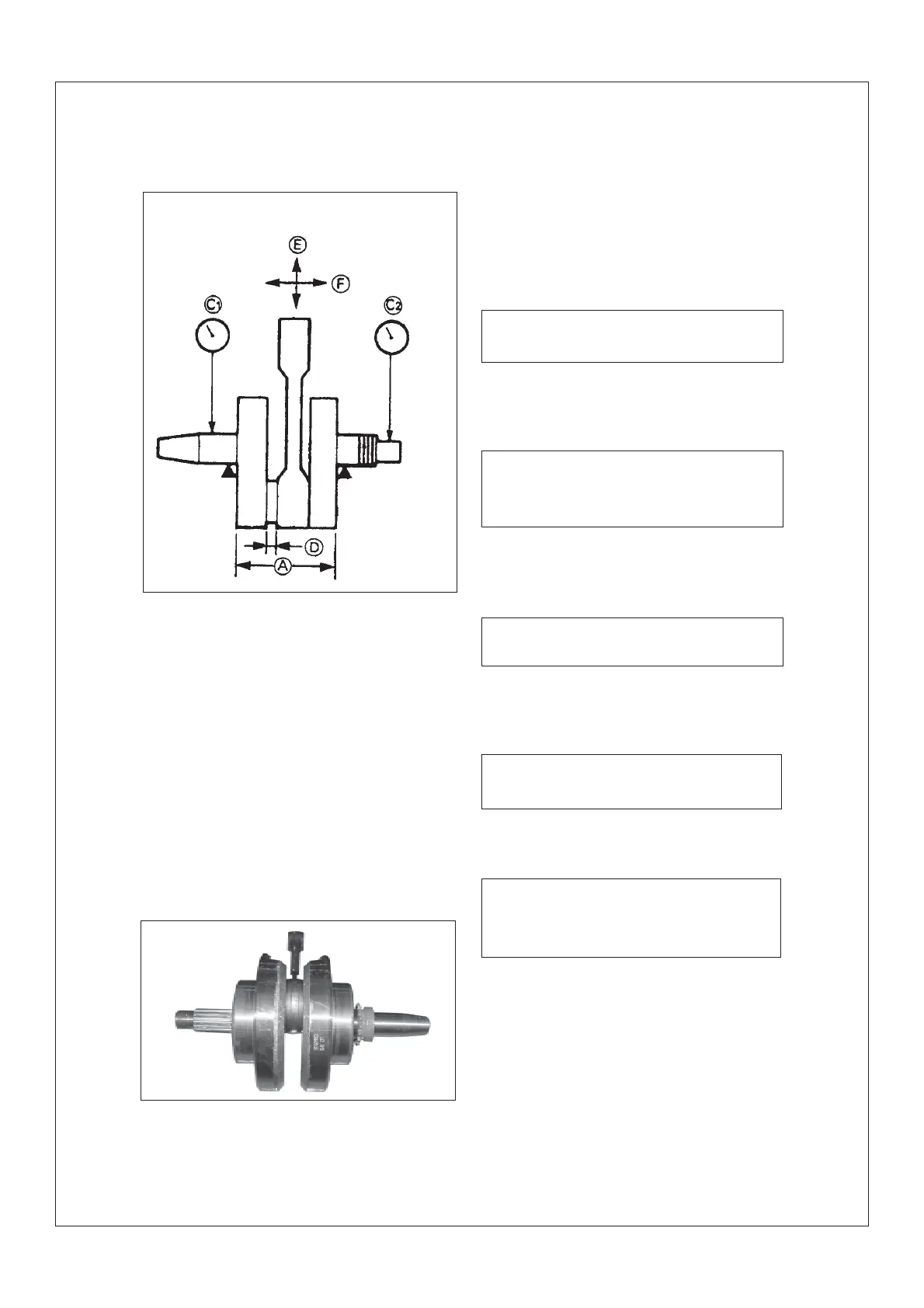

1)Measurement
.Dimension A of crankshaft assy
If out of specification replace it or repair it
Dimension of crankshaft assy
55~55.05mm
.Runout C
If out of specification replace it or repair it
Runout Limit
C1:0.03mm
C2:0.03mm
.Side clearance D of big head of connecting
rod
If out of specification, replace it or repair it
Max side clearance
0.1~0.35mm
.Runout E of big head of connecting rod
If out of specificaition, replace it or repair it
Runout amount of big head of connecting rod
0.008~0012mm
2)Inspection:
.Crankshaft bearing
If there is some noise or not active in opera-
tion or overbig clearance, replace it.
Clearance of small end:
0.30~0.70mm
Limit: 1.0mm
.Clearance F of small end
If out of specification, replace it or repair it
