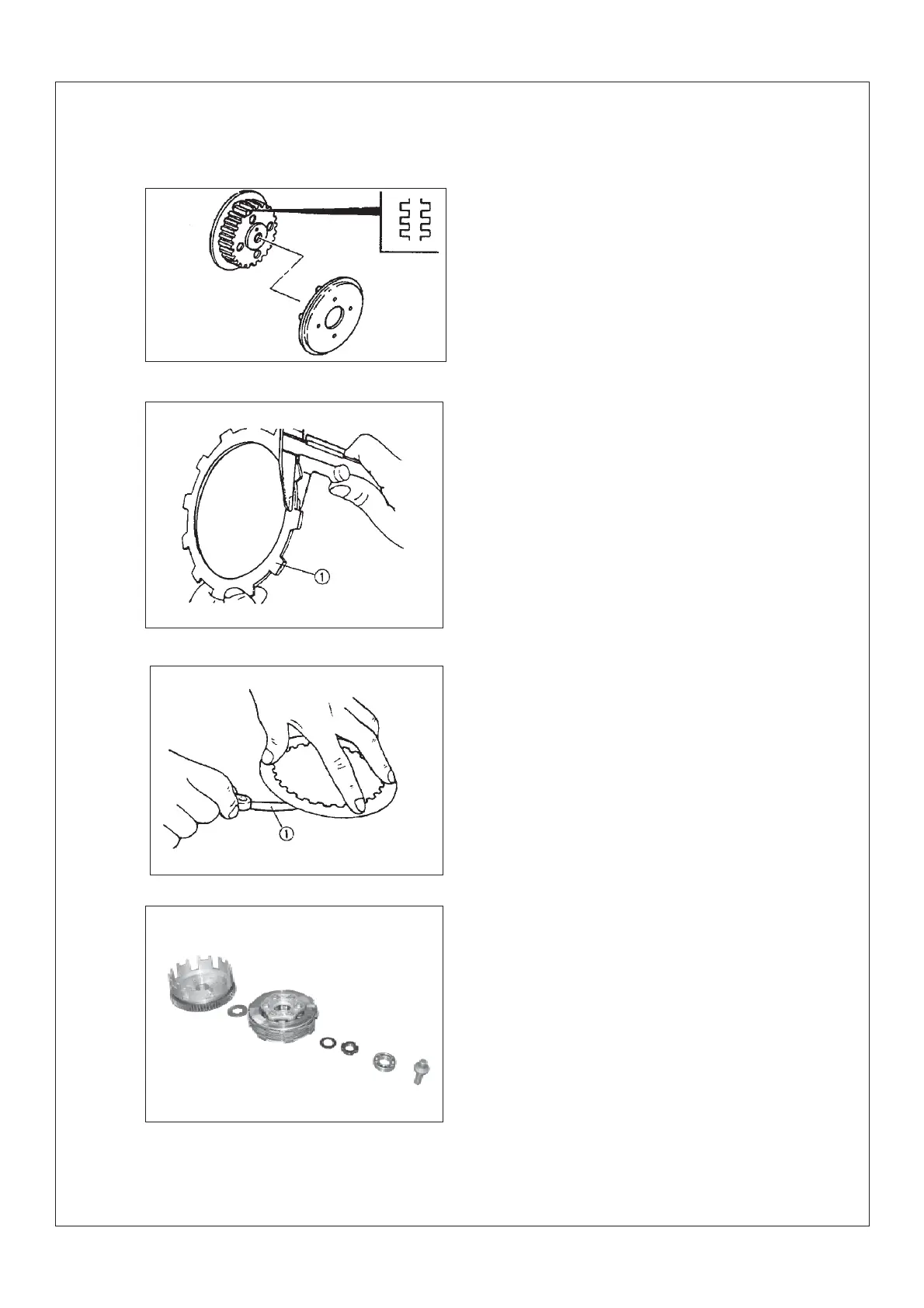

Clutch hub assy and pressing plate
Inspection
.Tooth groove on the clutch hub
.Tooth groove on the pressing plate
If there is scraped,worn or damaged,replace
the clutch hub or pressing plate.
Friction plate
1)Inspection
.Friction plate¢Ù
If damaged ,worn replace a set of friction plate
2)Measurement:
.Friction plate thickness
.Measure four positions
If out of specification,replace a set of friction
plate
Wear Limit:
2.8mm(0.110 in)
Clutch plate
Measurement:
.Planeness of clutch plate
Use flat plate and feeler gauge ¢Ù
If out of specification,replace it.
Planeness Limit:
0.2mm(0.008 in)
Clutch post rod and bearing
Inspection:
.Bearing(Post rod)
If rough in surface or jammed in rotation,re-
place it
.Clutch post rod
.Pressing cover
If worn,damaged,replace it.
- 172 -
