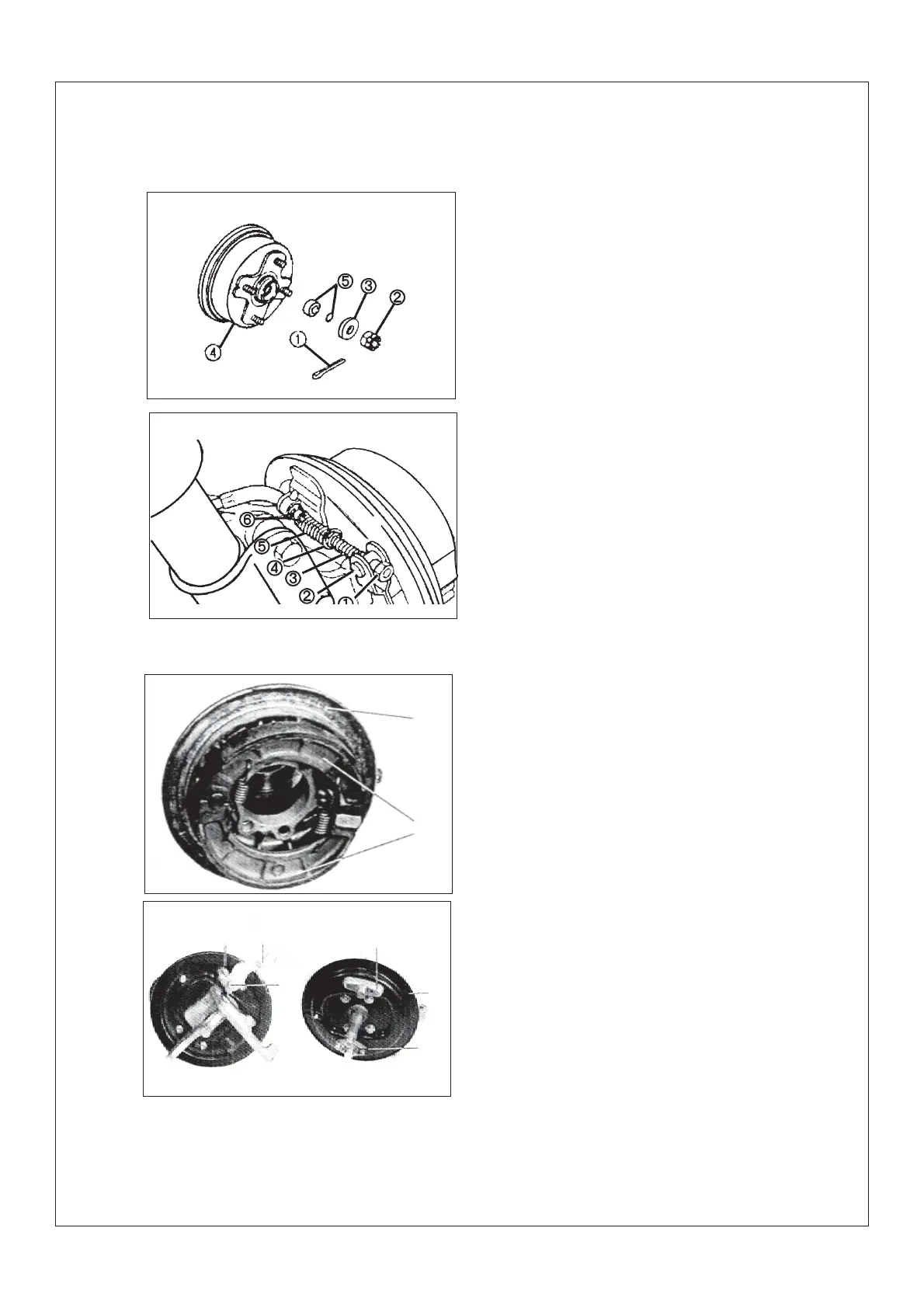

3)Disassemble split pin¢Ù, slotted nut¢Ú,plain
washer ¢Û,front brake ¢Ü and gasket ¢Ý.
4)Disassemble adjusting nut¢Ù, pin¢Ú, spring
¢Û, circlip¢Ü spring¢Ýand circlip¢Þ.
5)Remove the front brake cable and front brake
air pipe.
6)Disassemble brake shoe assy ¢Ùand front
cover assy ¢Ú.
7)Disasssemble
¢ÙFront brake arm ¢Ù
¢ÚWear indicating sheet ¢Ú
¢ÛFront brake cam shaft ¢Û
¢ÜFront brake cam shaft seat ¢Ü
¢ÝRotating pin seat assy ¢Ý
¢ÞBrake cover ¢Þ
