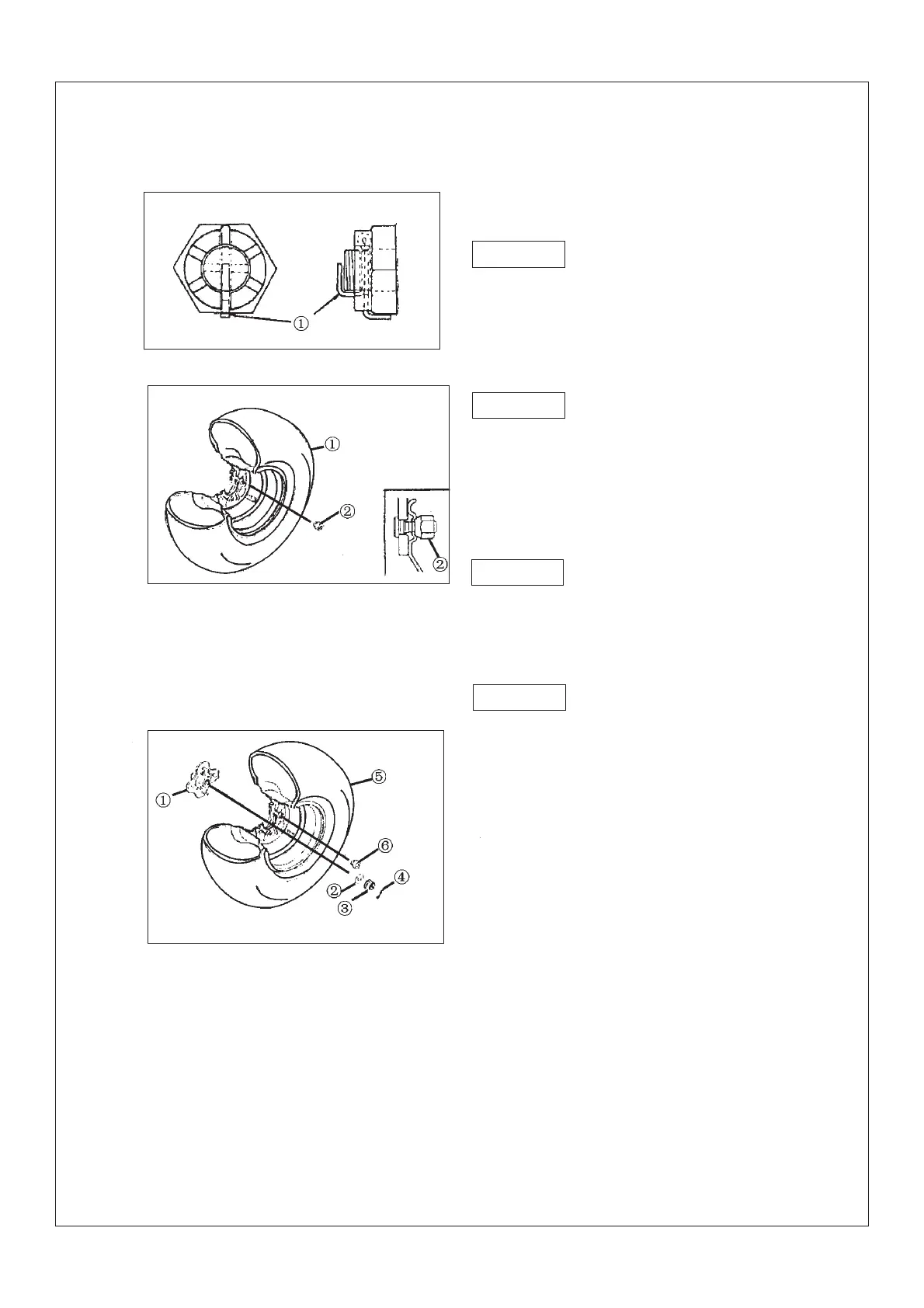

15.Installment
split pin4 ¡Á30 ¢Ù
After fastening the forque, the nut on the rear
wheel axle is not allowed to be loose. If the nut
concave groove is not align with the split hole
on the screw rod, make it by tightening up the
nut.
Always use the new split pin
16.Installment
Right rear wheel ¢Ù
Connecting nut of front and rear wheels ¢Ú
Attached:The torque of the connecting nut of
front and rear wheels is 55Nm.
The rotating direction of the wheel is the arrow
marking direction on the tire. For this, refer to
“Front wheel and front brake”section of this
chapter.
When installing the core nut to the rear wheel,
be sure to face its core edge to the wheel.
18.Installment
connecting plate of rear wheel ¢Ù
Washer 16 ¢Ú
Rear wheel axle nut M16¢Û
Split pin4 ¡Á30 ¢Ü
Left rear wheel ¢Ý
Connecting nut of front and rear wheels ¢Þ
Refer to “Rear wheel”section of this chapter.
19.Adjustment
Rear brake pedal clearance
Rear brake cable clearance
Refer to “Adjustment of left lever and rear brake
pedal free clearance ”Section of chapter Two.
Attached:
Rear brake pedal clearance:20-30mm
Caution
Warning
Caution
Warning
- 93 -
