Set up a Reachback Recording through the OSD
1. Open the OSD Menu by pressing Softkey 4.
2. Navigate to the Recording > Setup / Start page.
3. Set up the desired record settings within the Channel Setup area.
4. Select “Rbk Start” button from within the Channel Control area. This will start the
reachback.
5. When ready to start the recording, select the “Rec Start” button from within the
Channel Control area.

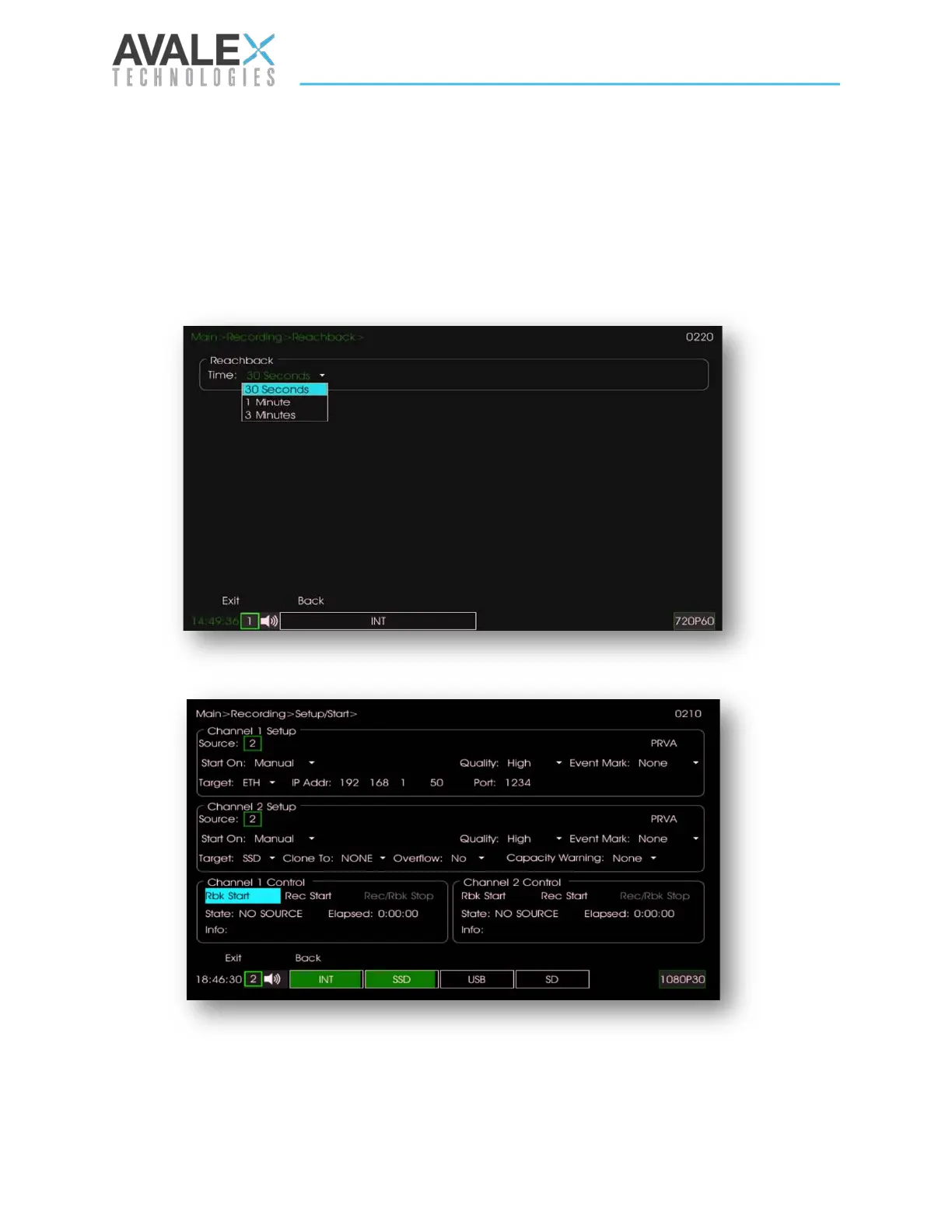

Figure 8 – Reachback Time
Figure 9 – Record Setup Page
