Page | 84 of 105
AVR8414 Operation Manual – Rev O
Appendix

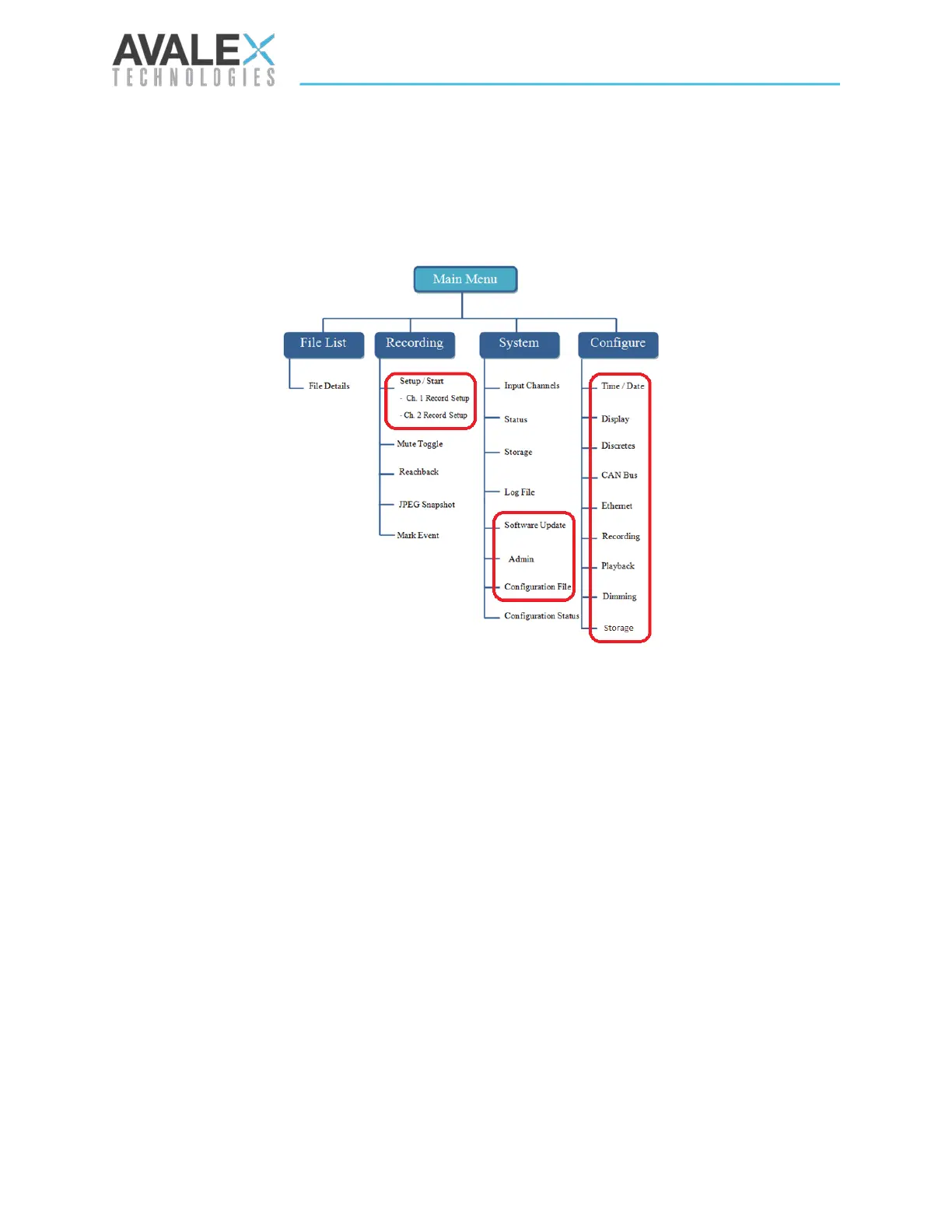

On-Screen Display Menu Diagram
The OSD menu diagram is intended as a visual map of the recorder’s system. For directions on
how to access and select options, please refer to the On-Screen Display Menu portion of this
manual. Menus circled in red are pass-code protected if pass-code protection is enabled.
Figure 81 - OSD Menu Tree
