AVR8414 Operation Manual – Rev O
Setup/Start
The Setup/Start menu allows the user to configure video sources on Channel 1 and 2.
Recording can be configured to start manually, upon turning on the device, or via a discrete
input. The user can select a target and overflow memory device, set the quality level of the
recording, and enter an Ethernet streaming IP address. This menu also provides for
configuration of the mark event function.

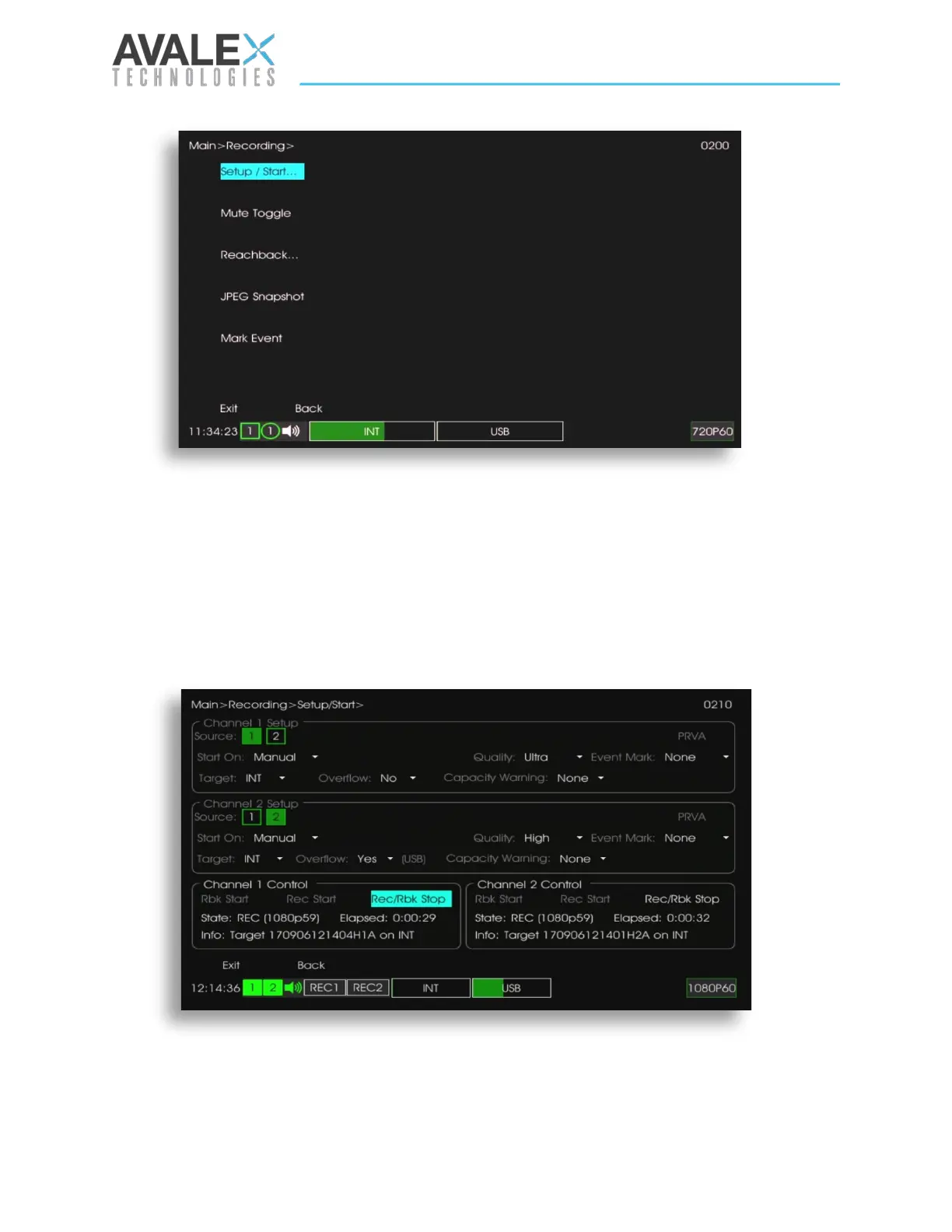

Figure 33 – Recording Menu
Figure 34 – Record Setup / Start Page
