Set Dimming Options
To set the dimming range of the OLED and bezel to be used in day night modes:
1. Press the Softkey 2 - STATUS and select DIM.
2. Press Softkey 3 to highlight and select MODE, 28V, DSPLY, or BEZEL.
28V
The 28V option allows the user to adjust the minimum and maximum dimming levels used by
28V or 5V dimming when in day/night mode.
DSPLY
The DSPLY option allows the user to adjust the minimum and maximum dimming levels to be
used by the display when in day/night mode.

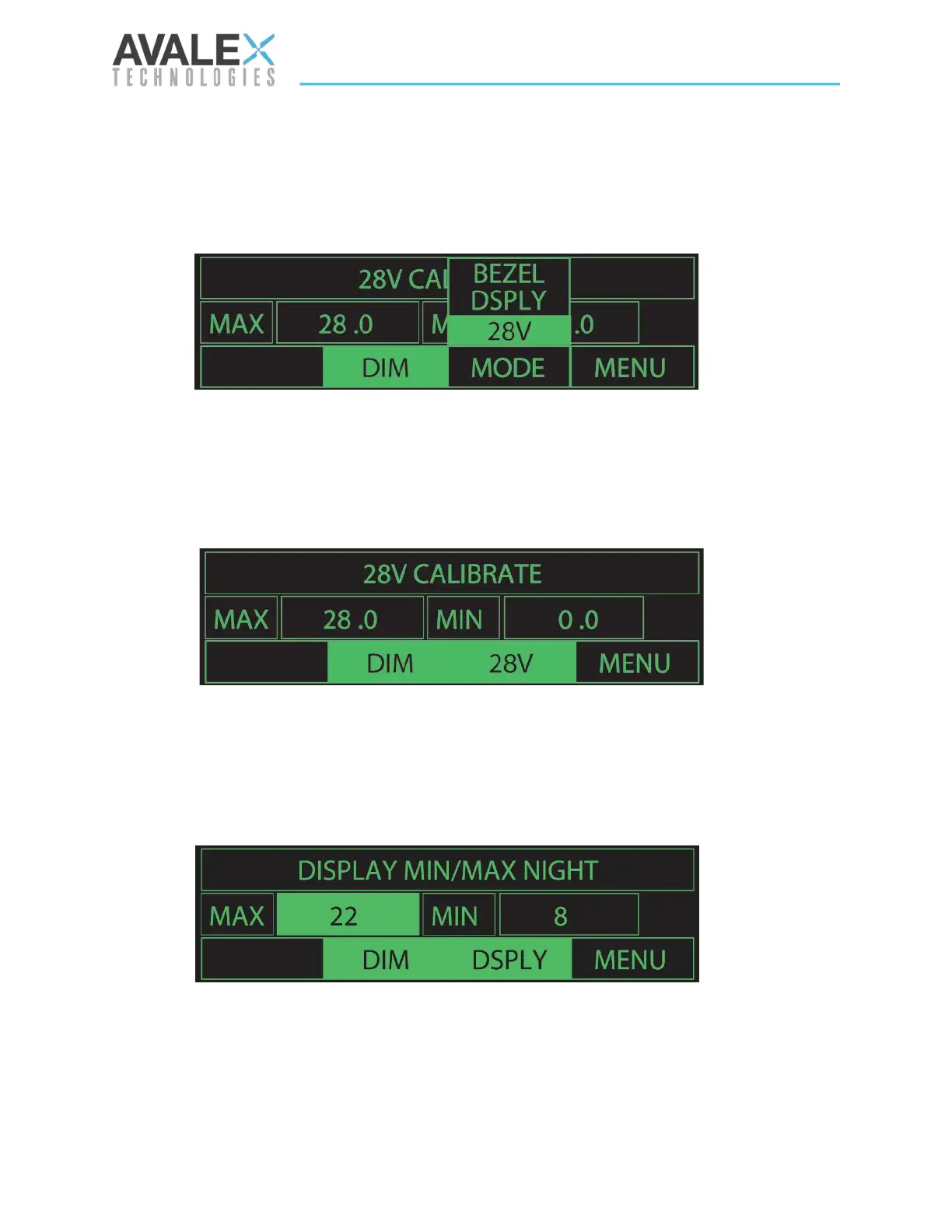

Figure 20 - SETDIM Ladder Menu
Figure 21 - SETDIM 28V Screen
Figure 22 - SETDIM DSPLY Screen
