AVR8414 Operation Manual – Rev O
Start Recording from Reachback
While in reachback mode, in order to begin permanent recording, press the line select button
for the desired channel. Once this channel is highlighted, press to begin the recording.
The time shown will include the buffer and the current recording time together.
Configuration
Display Outputs
The AVR8414 allows the user to configure the high definition output resolution and frame rate
to best match the resolution of the display being used.
The frame rate to select for the HD output will dictate
whether or not the SD output will be encoded as NTSC
or PAL.
To configure the display output, access the OSD: Menu >
Configure > Display. Under J9-SDI Output Display Format, select the appropriate format and
apply. Once the new display is initialized, the user has 15 seconds to activate the OSD “Keep”
or “Revert” buttons to ensure that the selected format is compatible with the connected LCD
display.
Table 4 – Display Output
Standard Output Signal
NTSC 30 or 60 Hz
PAL 25 or 50 Hz

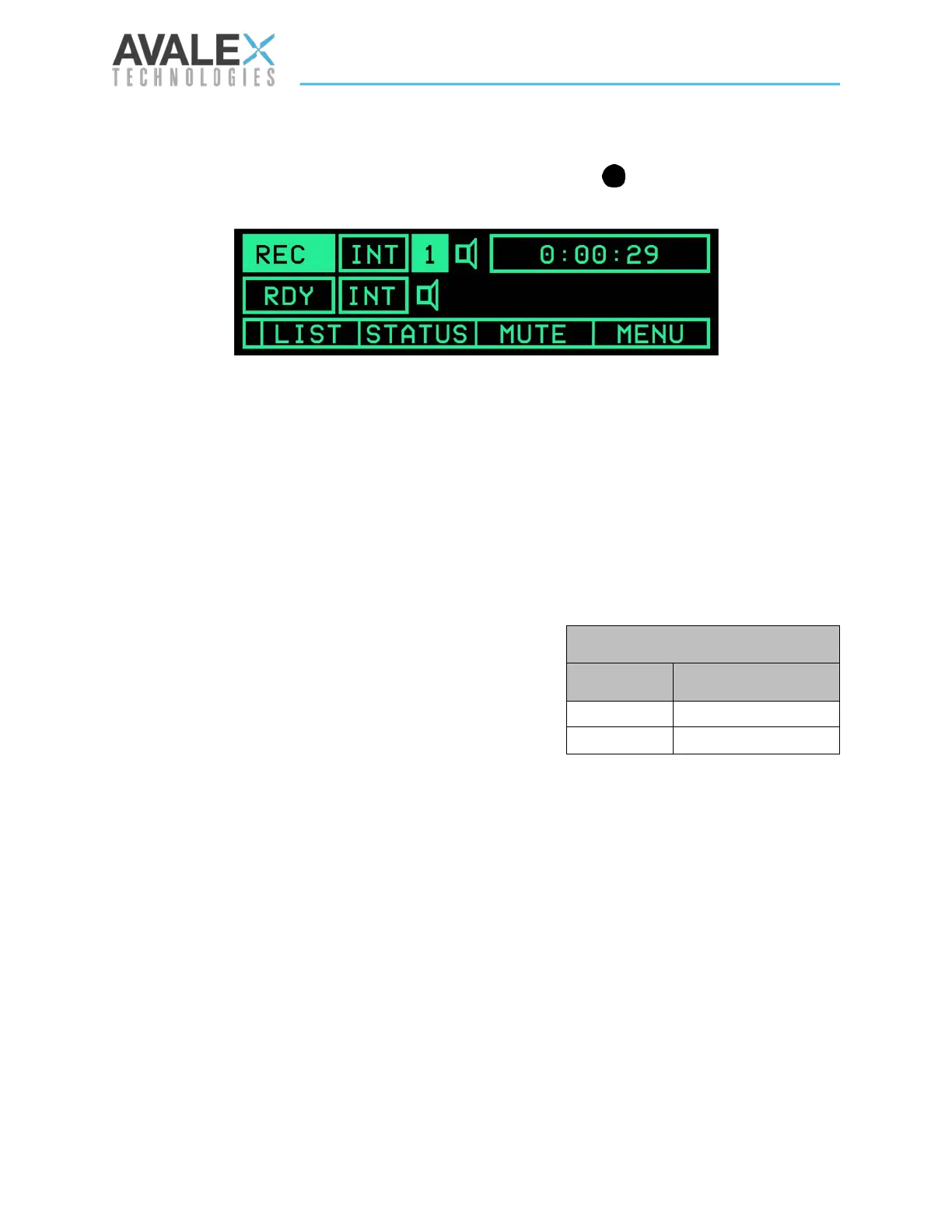

Figure 12 – Record from Reachback
