AVR8414 Operation Manual – Rev O
Communications (COMM)
The communications screen shows the remote status of any control communication and the
current real-time status of each connection. When a connection is being received, the block
will fill to show that data is being received.
Messages (MSGS)
When events occur that generate messages, they will be displayed on the message page. Use
the encoder knob to scroll through the available messages.
Currently the message screen is the (CAS) Crew Alert Screen.
Version (VER)
The version screen displays the AVR’s unique identification number and the current software
version that is installed on the recorder

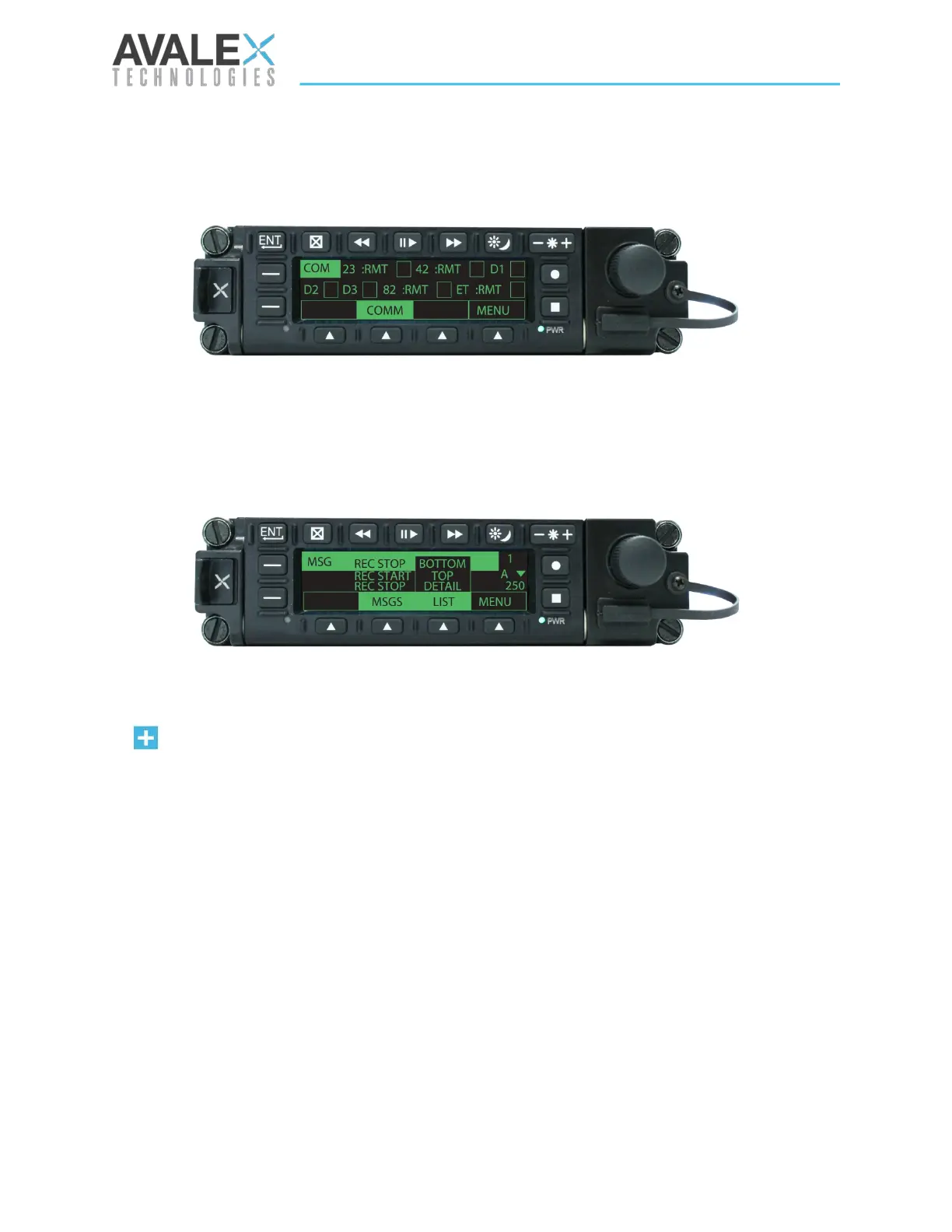

Figure 51 - Communications Screen
Figure 52 - Message Screen
