AVR8414 Operation Manual – Rev O
OSD
Event Mark
The recorder allows the user to mark points in time while recording an event. To manually mark
an event, highlight Mark Event on the OSD Recording menu and press the encoder knob.
Snapshot
During recording, the user can take a screenshot of current display content. To take a
snapshot from the OSD, go to the Recording Menu and highlight JPEG Snapshot. Press the
encoder knob.
Audio
To mute/unmute the audio for all recordings, select Mute Toggle from the Recording screen of
the Main Menu.
Overflow
The user can enable the Overflow record option to ensure video is not lost when the target
memory device is full. To configure Overflow from the OSD, enter the Main Menu and select
Recording. From the Setup/Start menu, select Channel 1 or 2 Setup. Select Yes in the
Overflow menu.

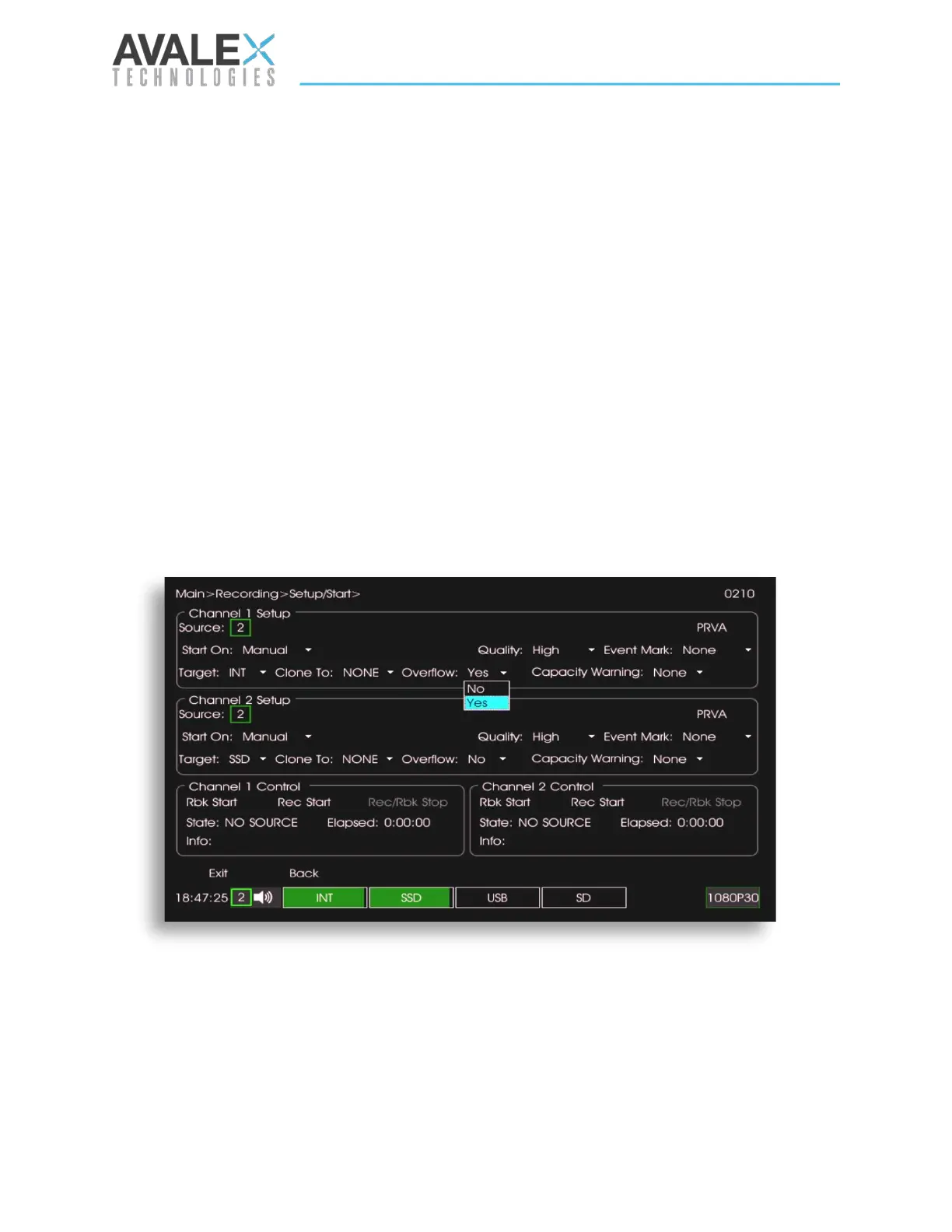

Figure 36 – Record Setup / Start Page
