AVR8414 Operation Manual – Rev O
Pass-Through Video
Front Panel
Pass-through video can be changed quickly by pressing the RWD key twice or the FFWD key
twice. This feature is not applicable when the recorder is playing back video.
OSD
Pass-through video can be selected by navigating to the Main > System > Input Channels
page and enabling the desired video source as pass-through. Video sources that are available
will have green icons. Video sources that are not available will have white icons. SD inputs will
have circular icons, and HD inputs will have square icons. Video sources that are selected for
recording are solid green or solid white. To select a source for pass-through, highlight the row
for the desired input and press the encoder to select that input.

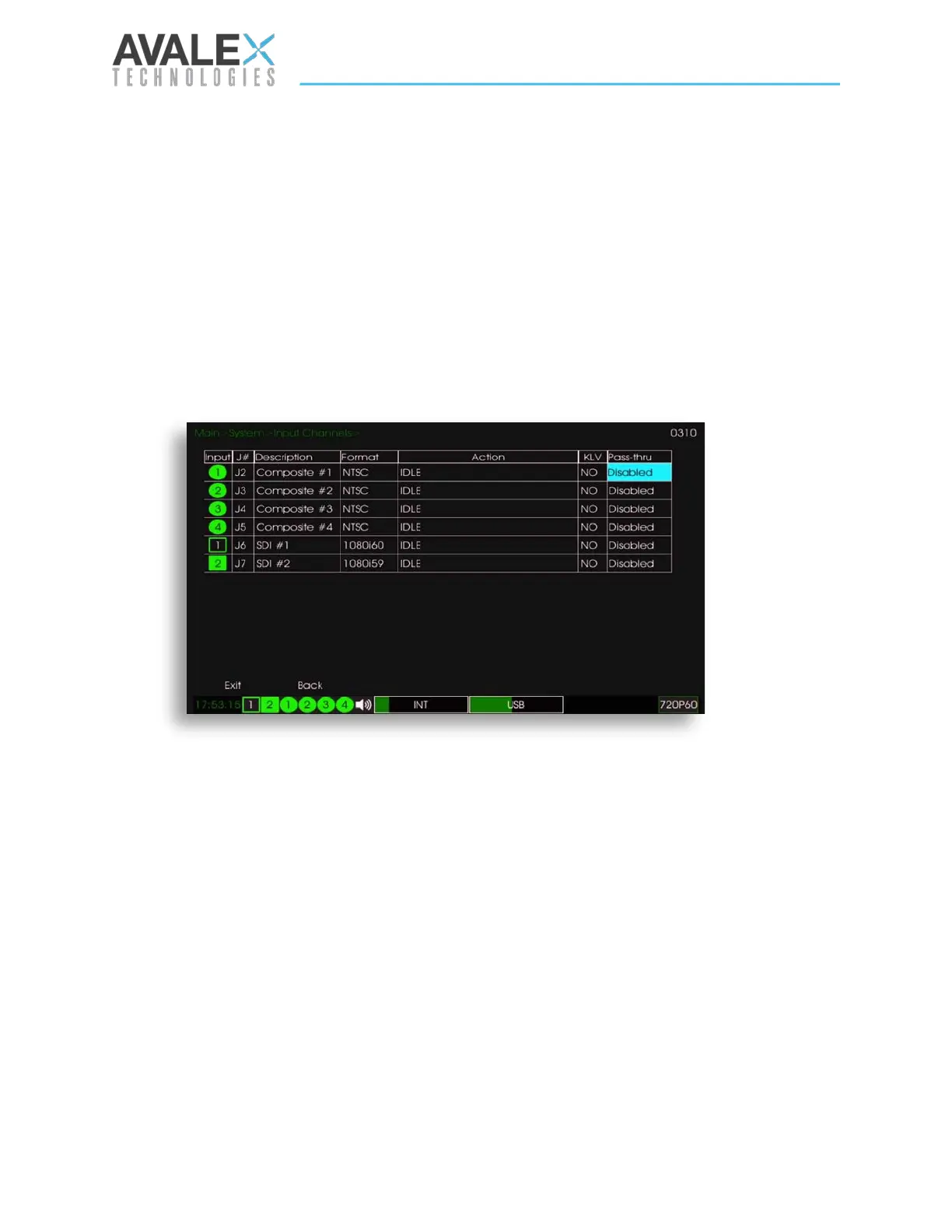

Figure 40 - OSD System/Input Channels Screen
