Page | 47 of 105
AVR8414 Operation Manual – Rev O
Storage
The AVR8414 has USB, SD, SSD, and internal memory (INT), indicated by the second pull-
down box in the Line Select Key.
Video Devices
The user can connect up to two (2) HD and four (4) SD video sources into the recorder. Once a
source has been selected, the HD (indicated by a box) or SD (indicated by a circle) will be
highlighted with an inverted fill, as demonstrated in Figure 44. HD sources can be assigned to
any Line Select Key. When recording, the device cannot mix HD and SD types on one Line
Select Key. They must be recorded from different Line Select Keys.

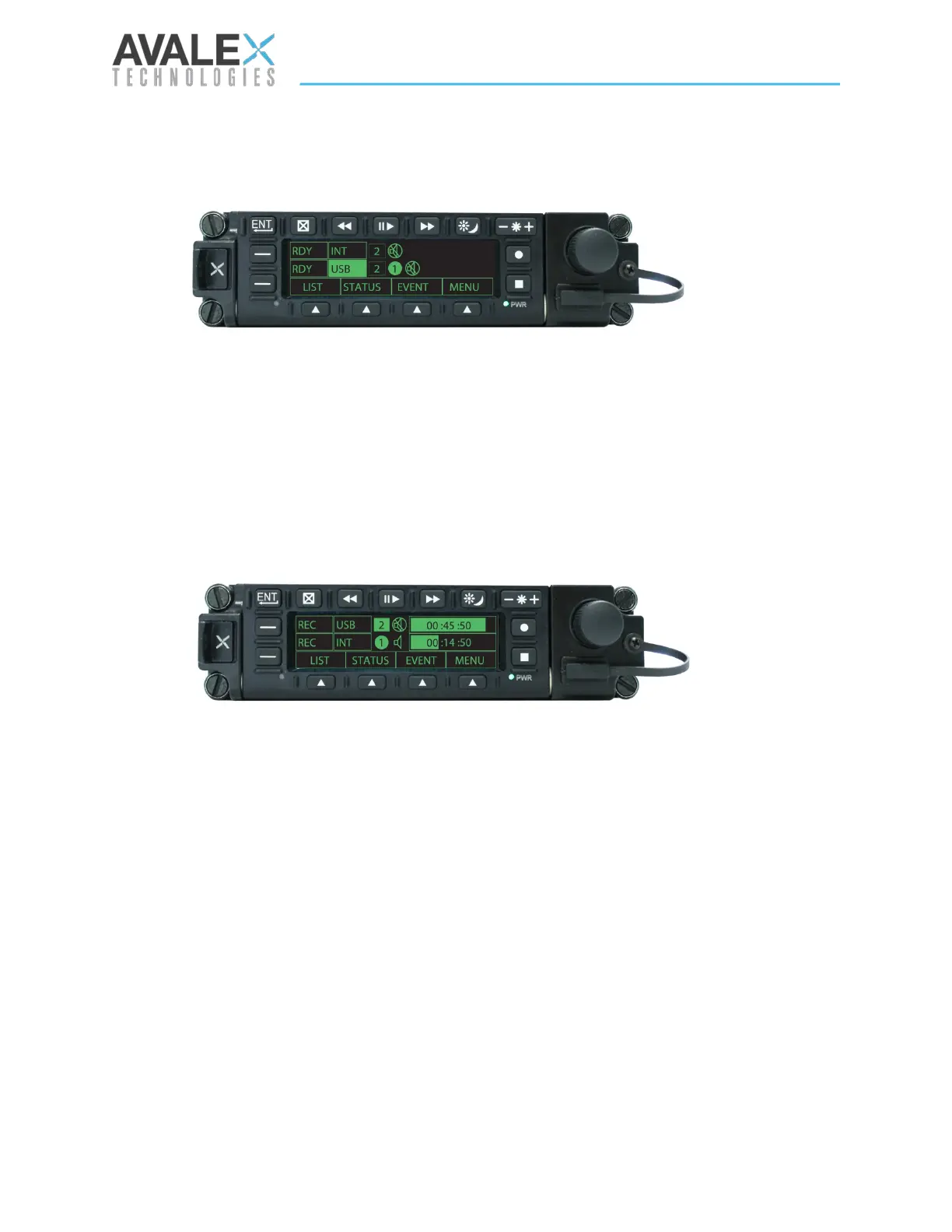

Figure 46 - Storage Screen
Figure 47 - Recording Multiple Devices Screen
