AVALEX TECHNOLOGIES AVR8414 User Manual

Page | 83 of 105
AVR8414 Operation Manual – Rev O

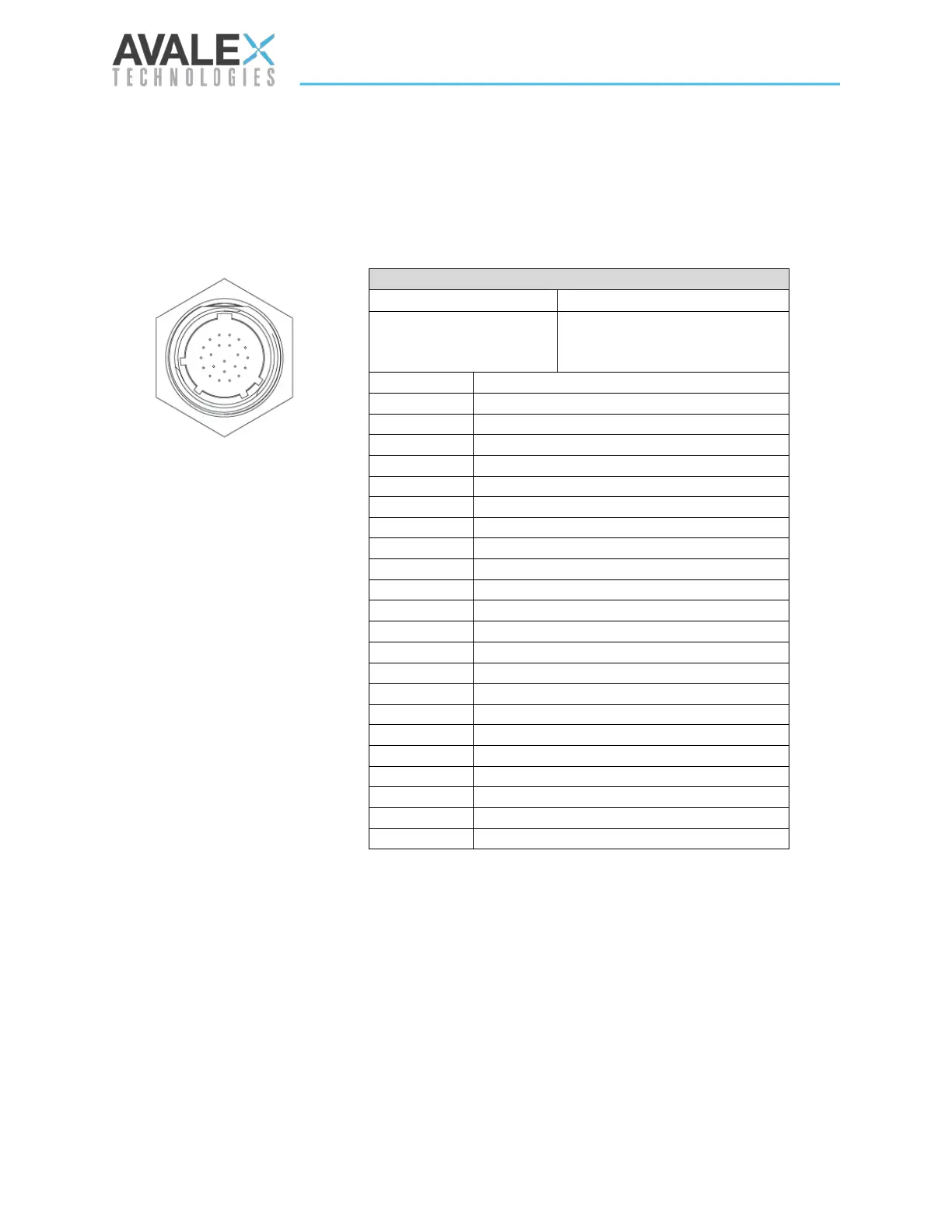

Alternate Communications Interface Pinout
Avalex offers the AVR8414 with two I/O options. The standard configuration shown above
features stereo audio in/out. The alternate configuration show below features a discrete output
for remote triggering of equipment.
J1 – Power / Communications AVR8414-11
Display Connector
Mating Cable Connector
D38999/24WC35PN
D38999/26WC35SN (Plug)
M85049/38S13W (Strain
Relief)
PIN
SIGNAL
1
+28VDC PWR
2
PWR GND
3
DIMMING-5 VDC/28 VDC/5 VAC
4
AUDIO GND
5
AUDIO IN
6
AUDIO OUT
7
DISCRETE INPUT 1 (OPEN/GROUND)
8
DISCRETE INPUT 2 (OPEN GROUND)
9
DISCRETE INPUT 3 (OPEN/GROUND)
10
CAN HIGH
11
CAN LOW
12
RS422 Rx-
13
RS422 Tx-
14
RS232 GND
15
ETHERNET Rx+
16
ETHERNET Rx-
17
ETHERNET Tx+
18
ETHERNET Tx-
19
DISCRETE OUT (OPEN/GROUND)
20
RS422 Rx+ / RS232 Rx
21
RS422 Tx+ / RS232 Tx
22
DISCRETE OUT GND
