Solution
Adjust the way the image appears on the monitor. To see your adjustments in real-time, we
recommend performing this procedure from the endpoint itself.
If configuring from the endpoint, you must first enable advanced configuration, as described in
Enabling Advanced Maintenance on the XT Series on page 112.
1. Access the monitor settings. From the XT Series web interface, select Administrator
settings > I/O connections > Monitor > Graphic Adjustments. From the endpoint's main
menu, select Configure > Advanced > I/O connections > Monitor > Graphic
Adjustments.
2. Navigate to the monitor requiring adjustment (Monitor HD1 or Monitor HD2).
3. Select your preferred image view mode. On the Scopia
®
XT Executive, use the Monitor
HD2 area.

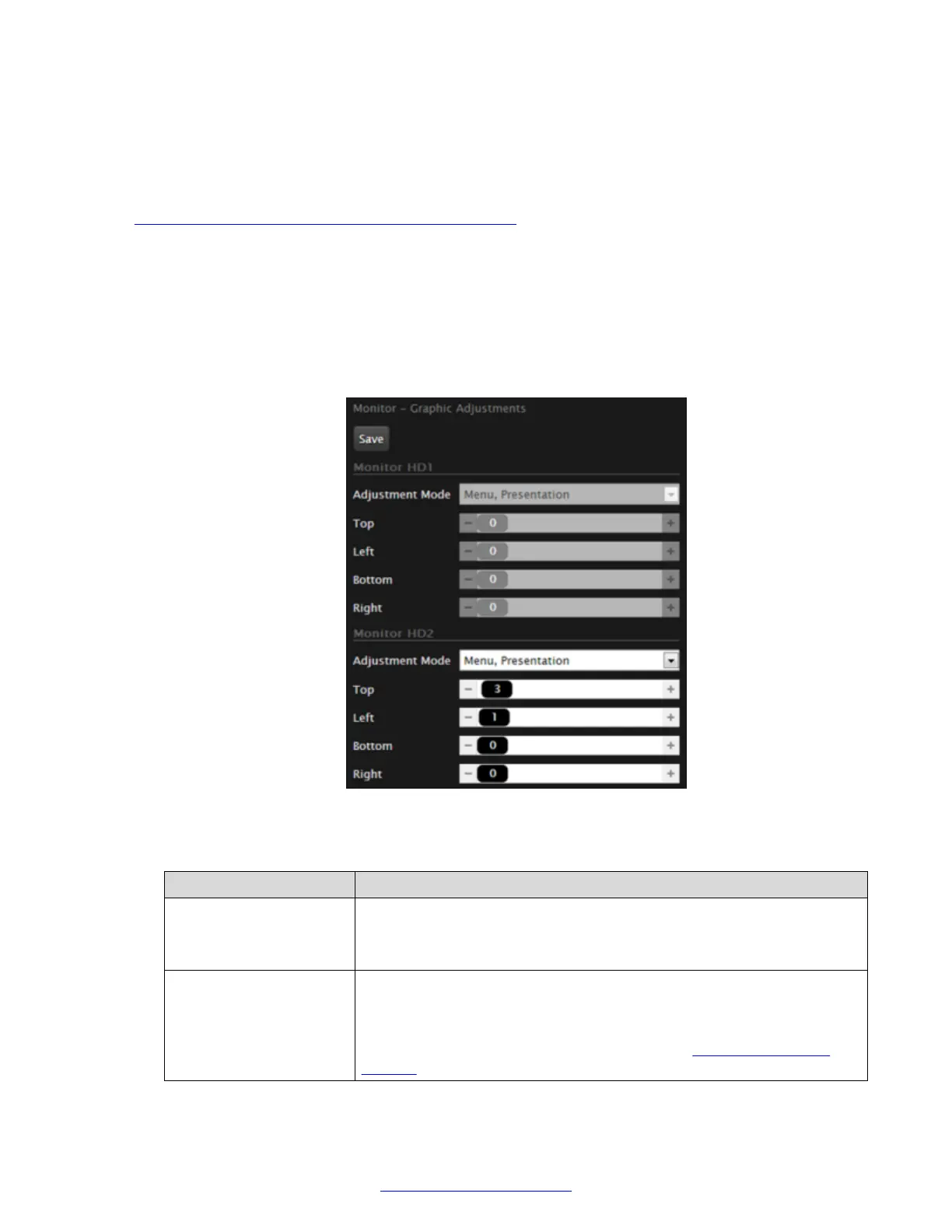

Figure 138: Adjusting the monitor
Table 53: Adjustment options for the monitor
Option
Description
Adjustment Mode Select Menu, presentation (default) to adjust both the system menu
and presentation, local or received.
Select Menu to adjust the system menus only.
Top, Left, Bottom,
Right
Drag the sliders to the required sizes until the menu or presentation
borders are visible on the monitor.
You can also adjust the image for the monitor displaying the system
menu, in the quick setup wizard as described in Adjusting the Image
Position on page 86.
Troubleshooting the Avaya Scopia
®
XT Series
186 Avaya Scopia
®
XT Series Deployment Guide April 2015
