It also includes a 10-meter VISCA cross cable, enabling you to control both cameras with the same
XT Remote Control Unit on the XT5000 Series only, by connecting a VISCA cross cable between
the cameras. This disables the extra remote control. VISCA is a standard protocol to control PTZ
cameras.

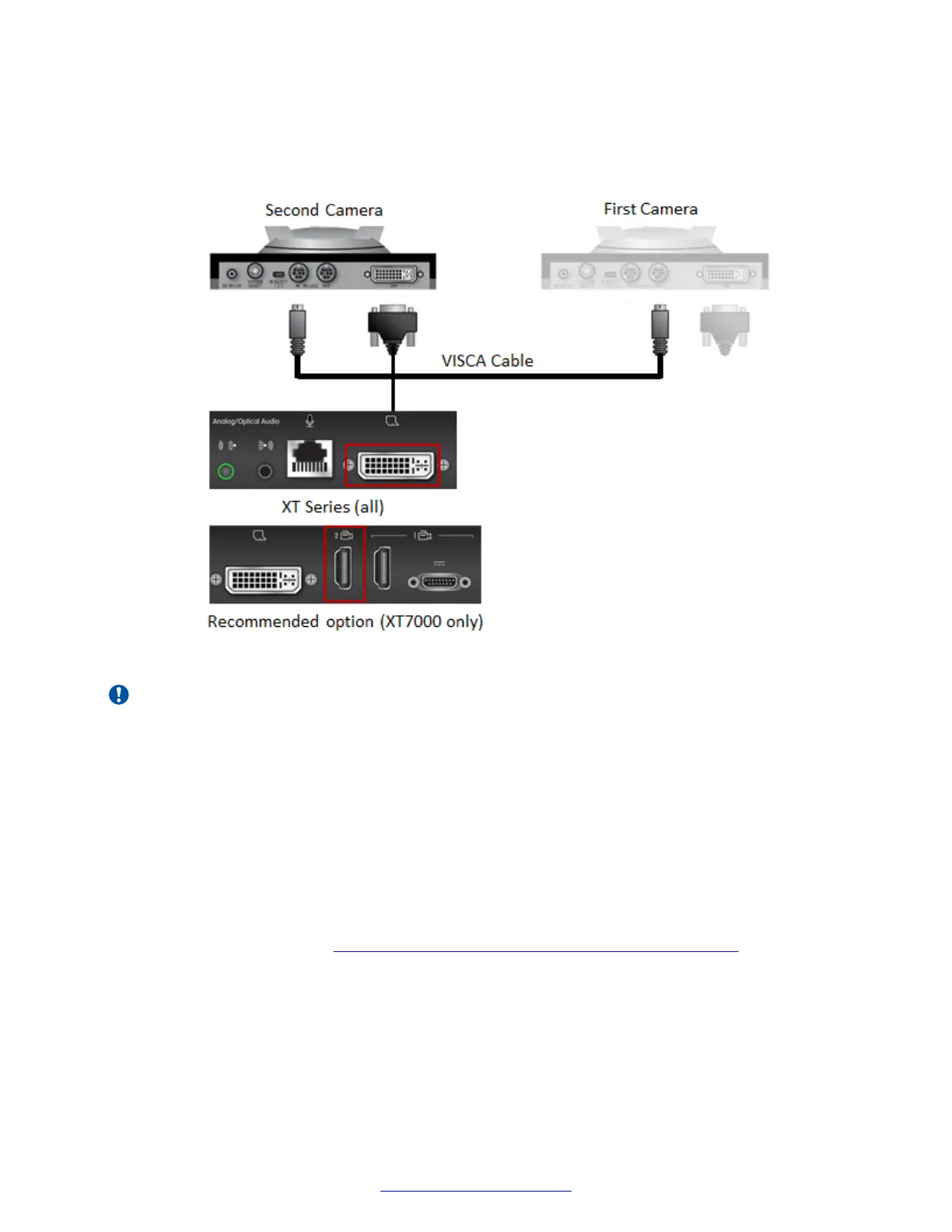

Figure 28: Connecting an additional camera directly to the XT Series
Important:
Connecting cameras with a VISCA cable requires that both are exactly the same model.
Before you begin
For larger room setups, if you need a longer HDMI cable than the supplied five-meter DVI-HDMI
cable, be sure to add HDMI repeaters. For 1080p at 60fps, add a repeater every five meters. For
1080p at 30fps or 720p at 60fps, add a repeater every 10 meters. Compatible HDMI repeaters are
listed in Third-Party Accessories for Avaya Scopia
®
XT Series.
To control both cameras of the same model using one XT Remote Control Unit (on the XT7000
Series and XT5000 Series only), use the supplied 10-meter VISCA cross cable, or for large room
setups, buy a longer third-party cable, or create your own. The RS232 cable should be up to 15-20
meters long, where both ends have an 8-pin mini-DIN male connector. To create your own cable,
connect the pins as shown in
Figure 29: Creating your own long VISCA cross cable on page 53.
Setting Up the XT Series Hardware
52 Avaya Scopia
®
XT Series Deployment Guide April 2015
