Installation

AVENTICS | Marex 3D | R417003094–BDL–001–AA 57

English

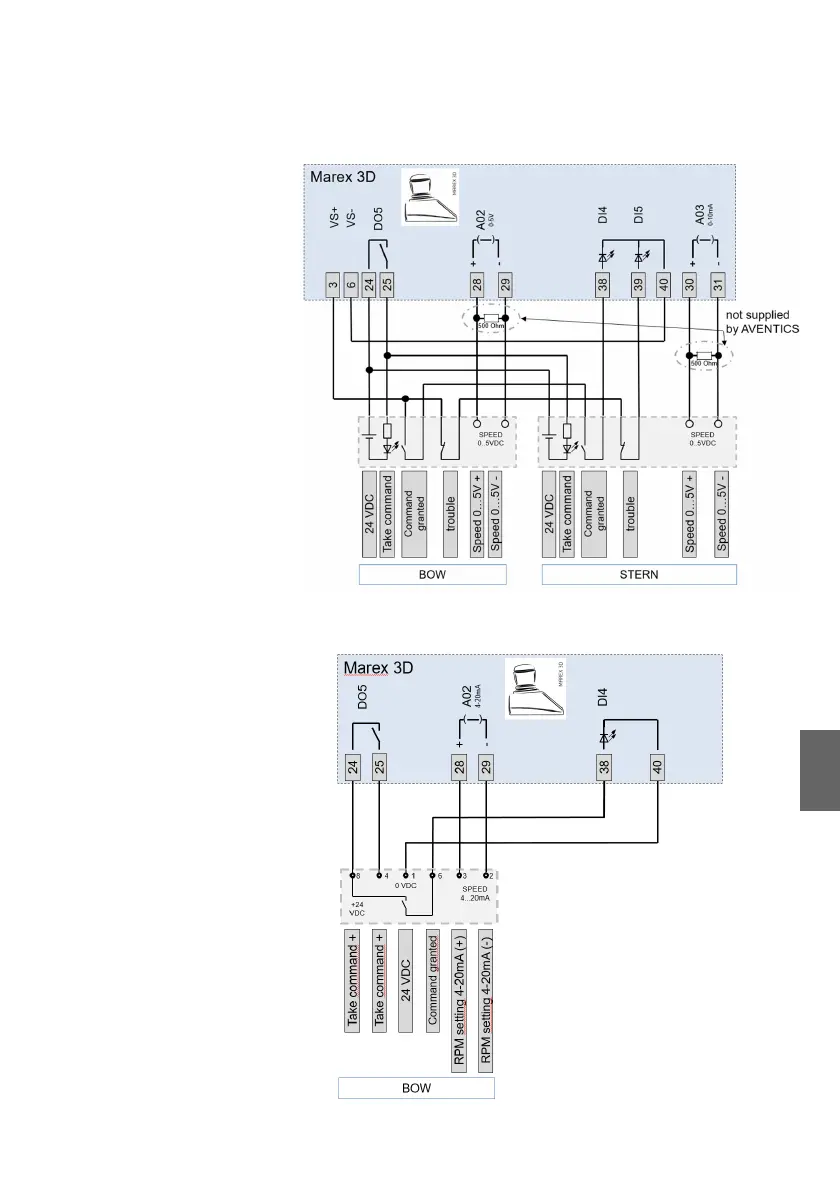

Fig. 34: Connection of CMC thrusters, bow and stern

5.3.5.4 Connecting BCS thrusters

Fig. 35: Connection of BCS thrusters, bow

3D_manual_R417003094_DE_EN.book Seite 57 Freitag, 30. November 2018 11:36 11
