4.1.1 Drive combinations
Marex3D applications differ with regard to the available engines
and thrusters. The following figure shows the drive
combinations which allow for the operation of the 3D mode.
4.2 Product description
4.2.1 System setup and symbols
This section shows the standard setups of Marex 3D in
combination with Marex OS III and Marex ECS. The figures use
the following symbols:

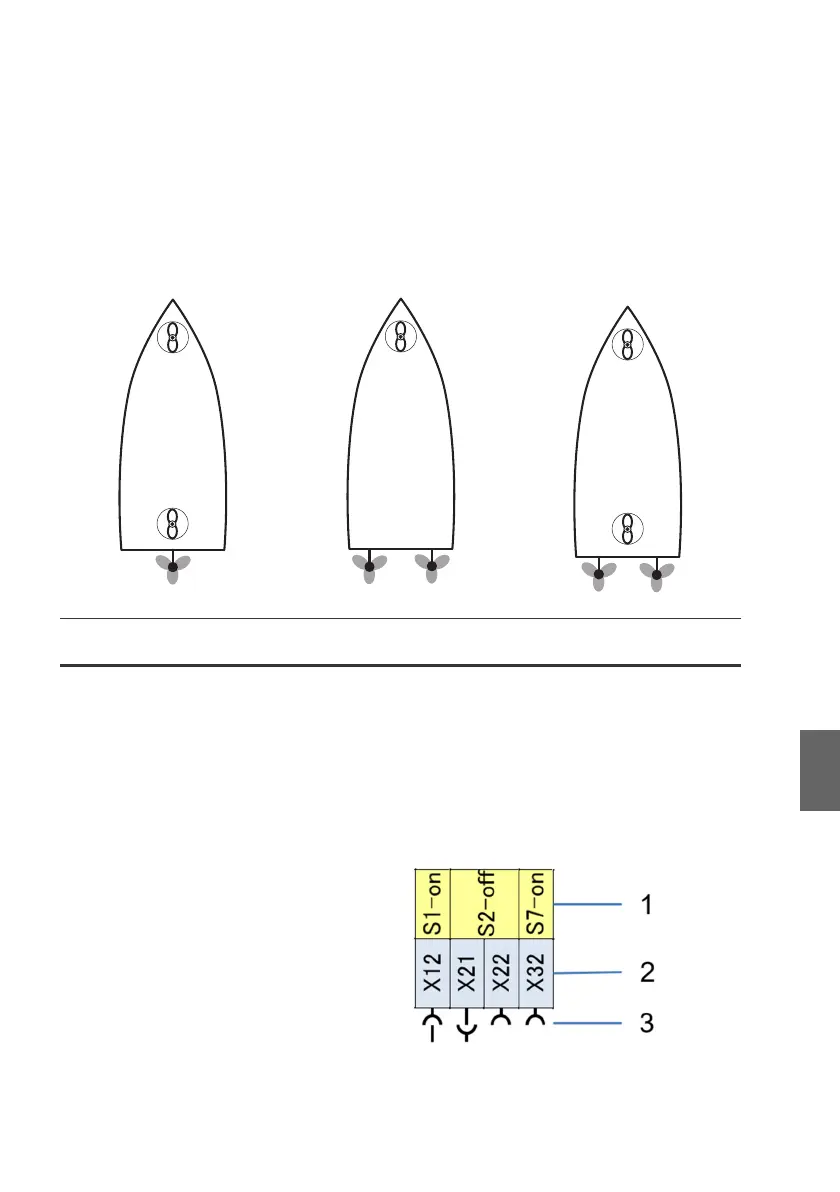

Single engine, bow and stern
thrusters
Twin engines, bow thruster Twin engines, bow and stern
thrusters
1 Position of the dip switch for the bus terminating resistor in
the 3D Controller
