Operation
88 AVENTICS | Marex 3D | R417003094–BDL–001–AA
Using the stern thruster Move the joystick backward and to the left or right to actuate the
stern thruster.

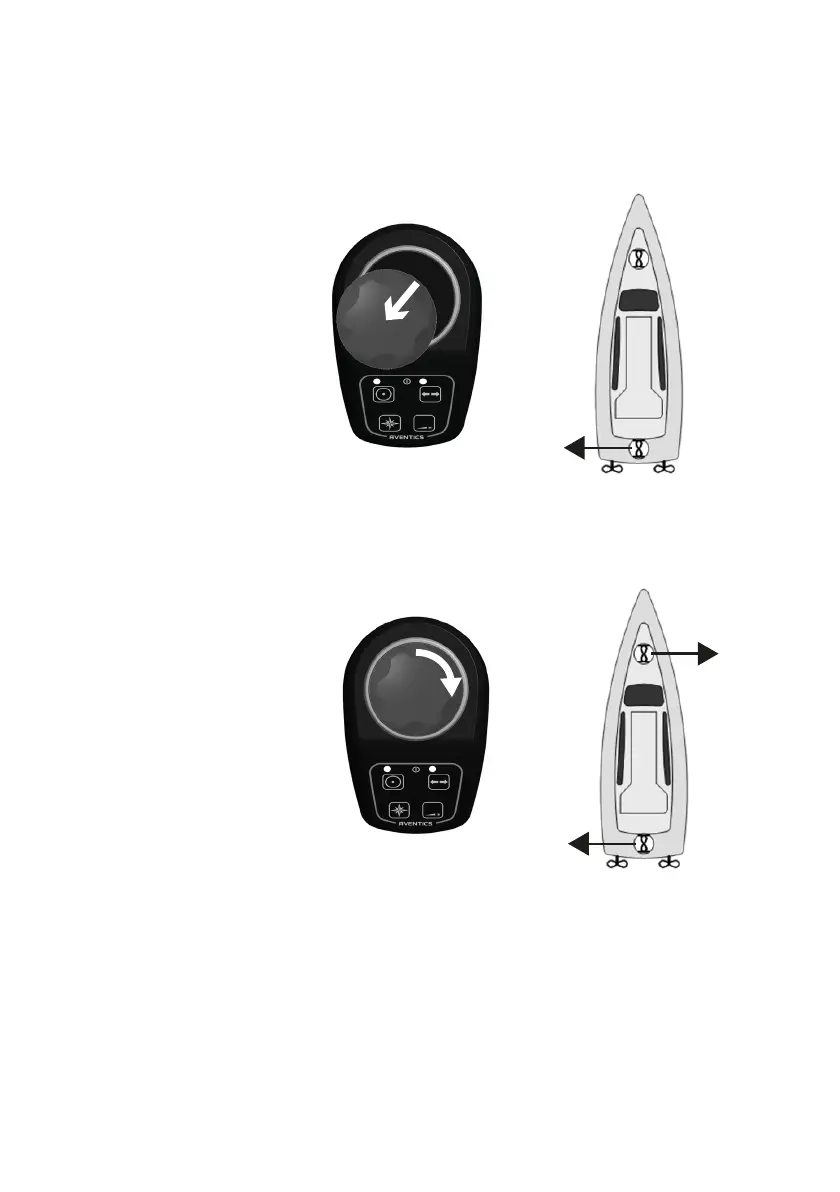

Fig. 48: Thruster mode, stern thruster
Turning left (right) O Turn the top of the joystick to the left or right to control both
thrusters in opposite sense of the other...
Fig. 49: Thruster mode, turning
7.5.2 Thruster mode with proportional thrusters
Proportionally controllable bow and stern thrusters can
distribute the available thrust between bow and stern.
The amount of thrust is determined by how far the joystick is
moved to the side. When it is moved forward in addition, the
thrust of the bow thruster remains unchanged while the thrust
of the stern thruster is reduced the more the joystick is moved
3D_manual_R417003094_DE_EN.book Seite 88 Freitag, 30. November 2018 11:36 11
