forward. The same applies correspondingly when the joystick is
moved to the side and backwards.
O Move the joystick sideward to divide the thrust evenly
between bow and stern.
O Move the joystick sideward and forward to reduce the stern
thrust while the bow thrust remains unchanged.
O Move the joystick sideward and backward to reduce the bow
thrust while the stern thrust remaines unchanged.
O Move the joystick 80% forward to use the bow thruster only.
O Move the joystick 80 % backward to use the stern thruster
only.

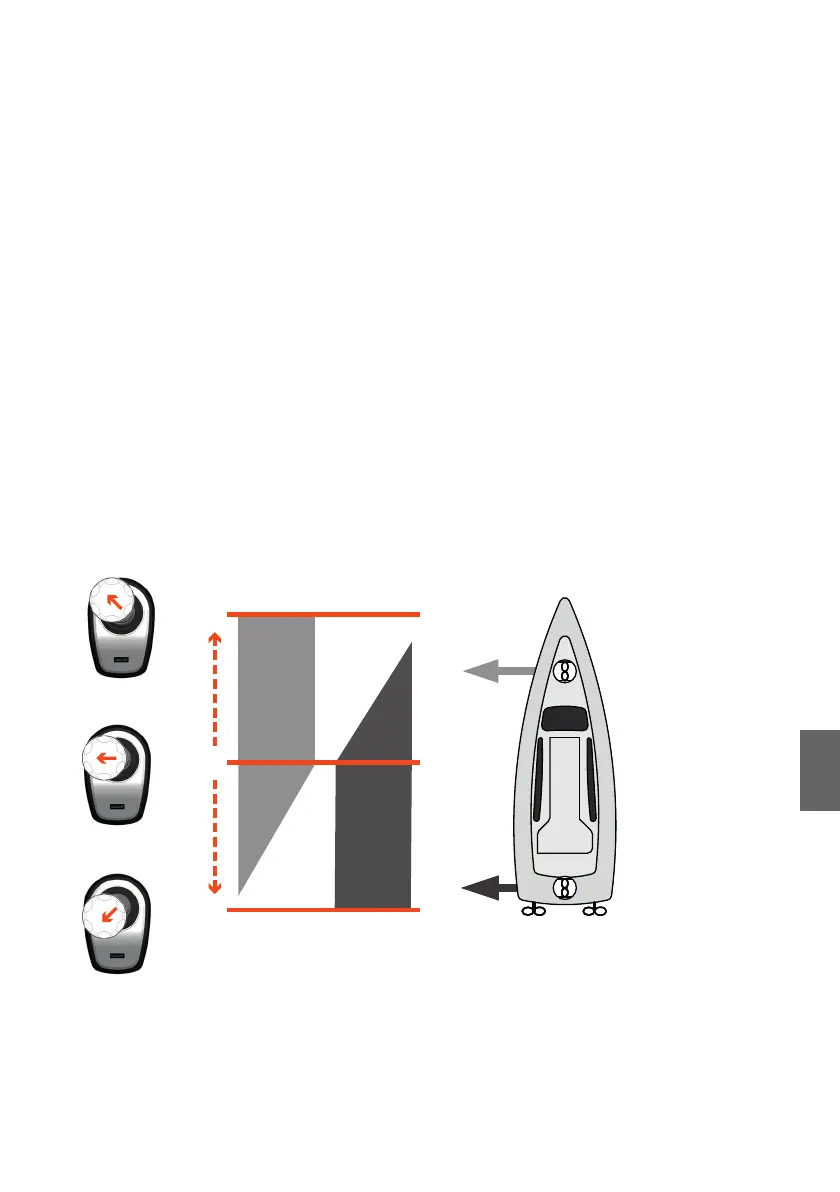

Figure 50 shows the thrust distribution between bow and stern:
Fig. 50: Distribution of thrust between bow and stern with proportional thrusters
100 % 0 %
100 %
100 %
0 %
Quantity of Thrust (%)
Quantity of Thrust (%)
Bow Thruster
SternThruster
100 %
Joystick Travel Forward
Joystick Travel Backward
