About this product
AVENTICS | Marex 3D | R417003094–BDL–001–AA 27
English
For CAN bus cables and terminating resistors please refer
to chapter 9, Accessories, on page 92.
4.3.1 Joystick Type 531
The Joystick Type 531 is the operating element of Marex 3D
used to maneuver the ship intuitively at slow speeds. It is
designed for panel installation at indoor or outdoor control
stations. By moving the swivel-mounted control stick and the
rotatable control knob, the operator presets the heading,

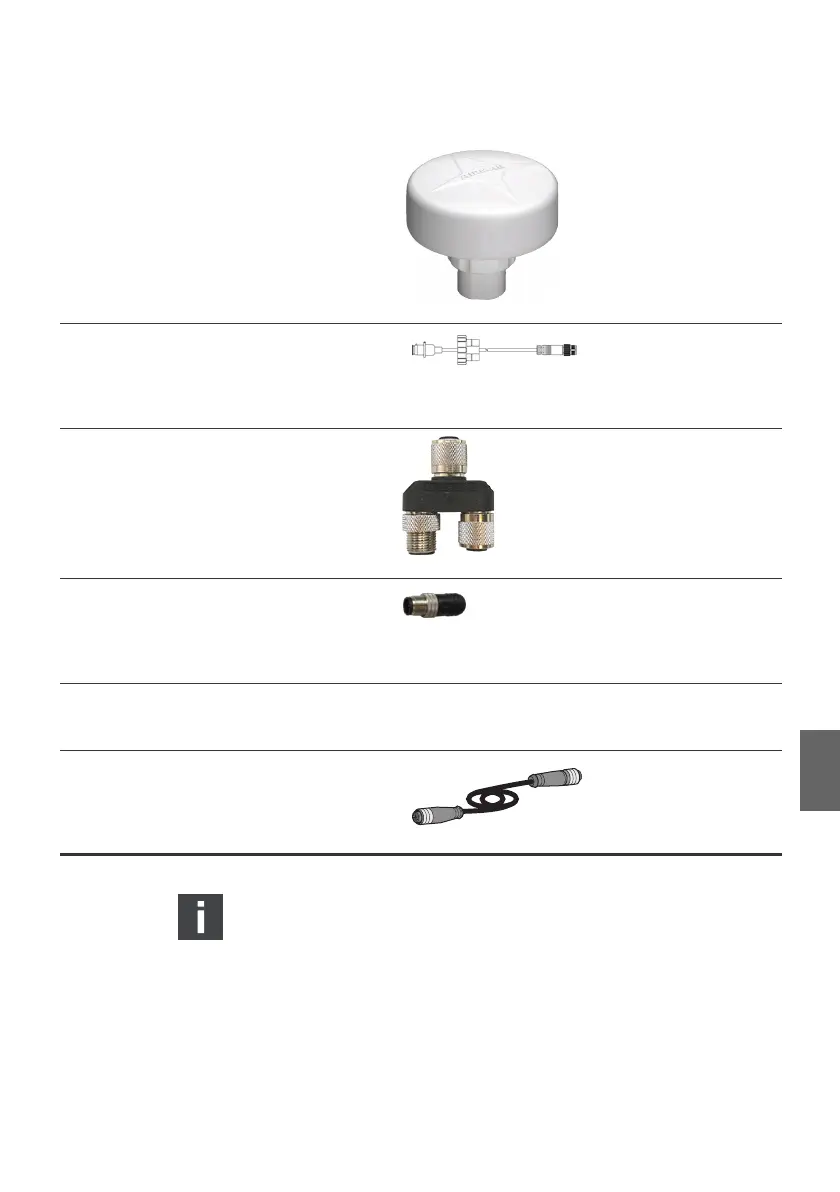

Heading sensor
Material No. R419801301
The heading sensor includes an electronic
compass and provides data on the ship‘s
position which Marex 3D requires to
compensate unwanted movements due to
crosswind or current.
Sensor cable NMEA2000
Material No. R419801829
NMEA2000-suitable cable to connect the
compass to Marex 3D, length 10 m.
Terminating resistor included.
NMEA2000 - Distributor
Material No. R419800162, R419800372
Bus distributor CAN socket/pin on socket
The NMEA2000-distributor is required to
connect NMEA-devices.
Terminating resistor M12 120 Ohm
Material No. 8941054264 (male)
Material No. 8941054274 (female)
The terminating resistor is required to
terminate the open end of each CAN bus.
NMEA S-Link interface cable, M12
Material No. R417003207
For S-Link Sleipner thrusters only
Marex ECS gender changer for bus cables
Material No. R419801362
