Operation
86 AVENTICS | Marex 3D | R417003094–BDL–001–AA

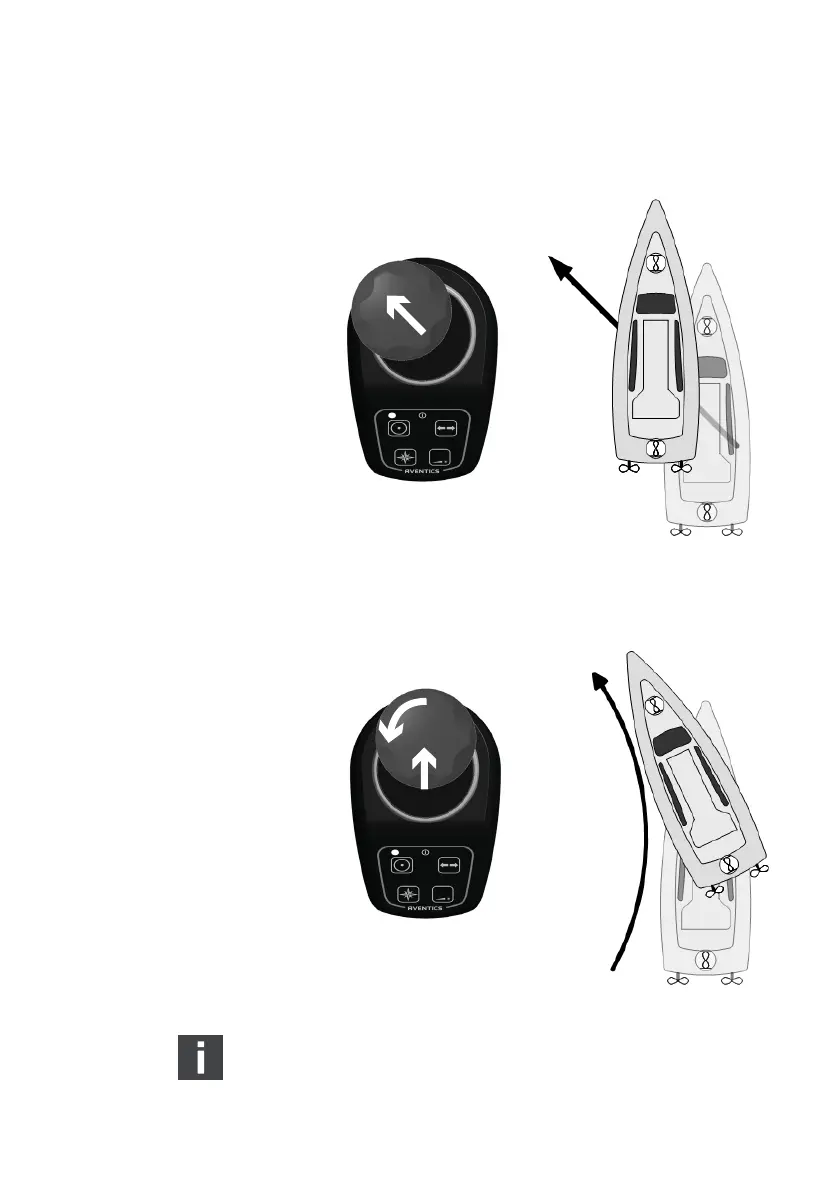

Traverse ahead (astern) O Move the joystick forward (backward) and sideward to
traverse your ship in ahead or astern direction.
Fig. 44: 3D mode, traverse ahead (astern)
Turning left (right) with
ahead (astern) thrust
O Move the joystick forward or backward and turn the top to
turn the ship around while moving ahead or astern.
Fig. 45: 3D mode, turning with thrust
The maneuvers illustrated can be combined if required.
Should one of the drives reach its limit, priority will be given
to the turning maneuver. The thrust for the longitudinal and
transverse movement will automatically be reduced.
