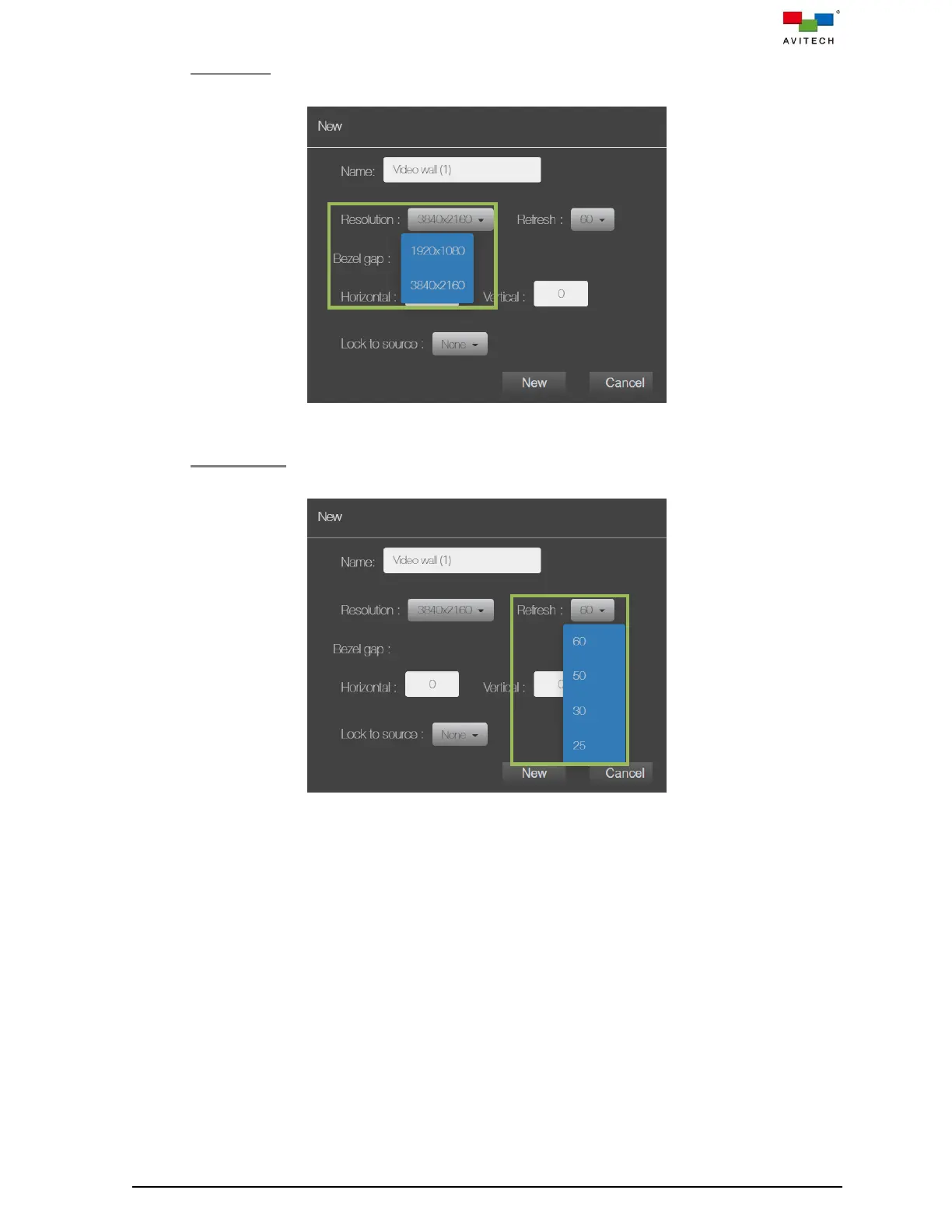

Resolution

Set a desire display resolution from the drop-down menu to the video wall.

Figure 5.2.20 Set Video Wall Display Resolution

Refresh Rate

Select a refresh rate from the drop down menu to match the display devices of video wall.

Figure 5.2.21 Set Video Wall Display Refresh Rate
