Banner iVu Plus TG Gen2 User Manual

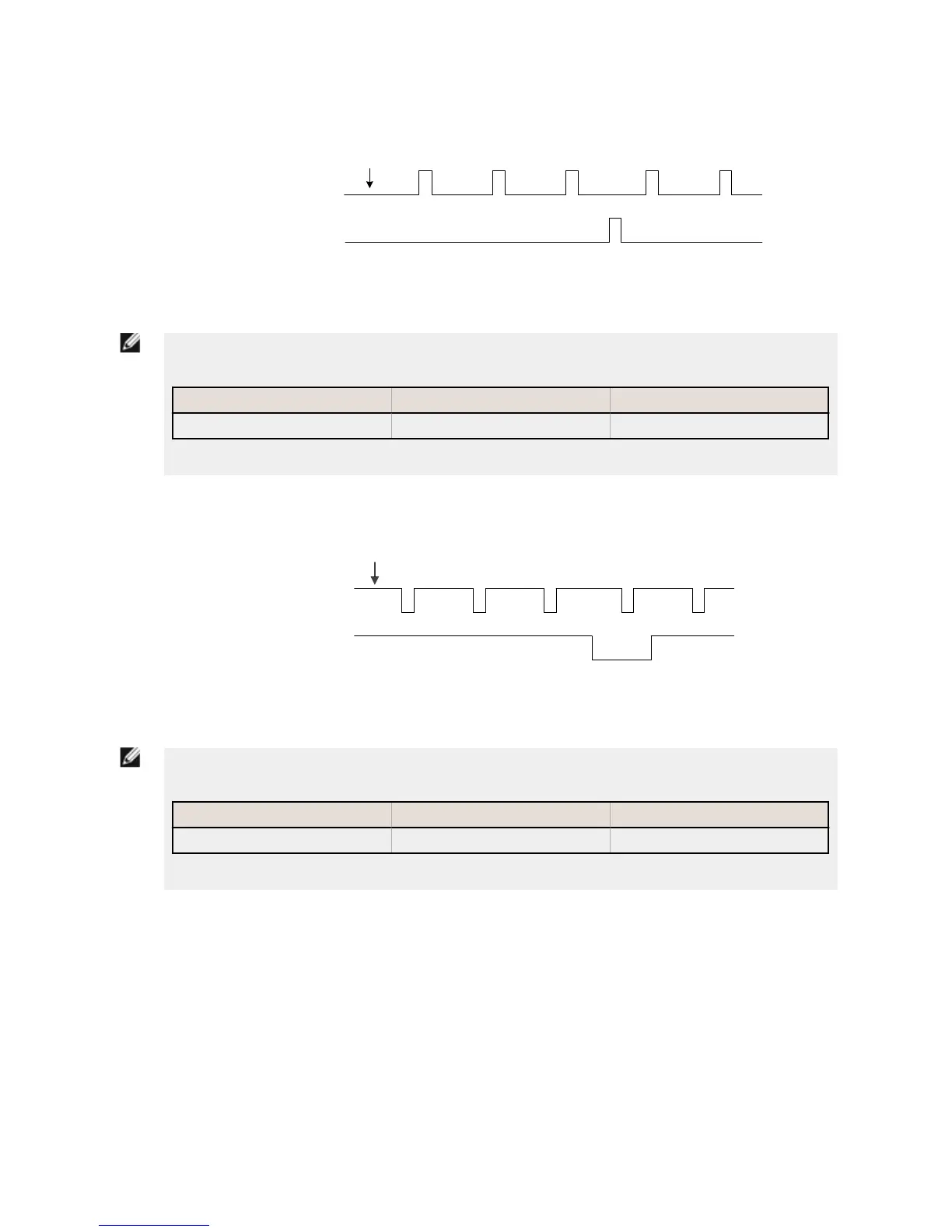

2.3.1 PNP (Low-to-High) Trigger and Remote Teach Input Waveforms
Power up
Trigger
Remote
T
each
Pink
Wire Color
Function
Gray
The sensor triggers from low to high, and Remote Teach behaves electrically like trigger.
NOTE:
Table 2: Required iVu Input Signal Voltage
ON OFF
PNP +10 to 30 V dc < 2 V dc
2.3.2 NPN (High-to-Low) Trigger and Remote Teach Input Waveforms
Trigger
Remote
T
each
Pink
Wire Color
Function
Gray
Power up
The sensor triggers from high to low, and Remote Teach behaves electrically like trigger.
NOTE:
Table 3: Required iVu Input Signal Voltage
ON OFF
NPN < 2 V dc +10 to 30 V dc
iVu Plus TG Gen2 Image Sensor
www.bannerengineering.com - Tel: 763.544.3164 11
