Banner iVu Plus TG Gen2 User Manual

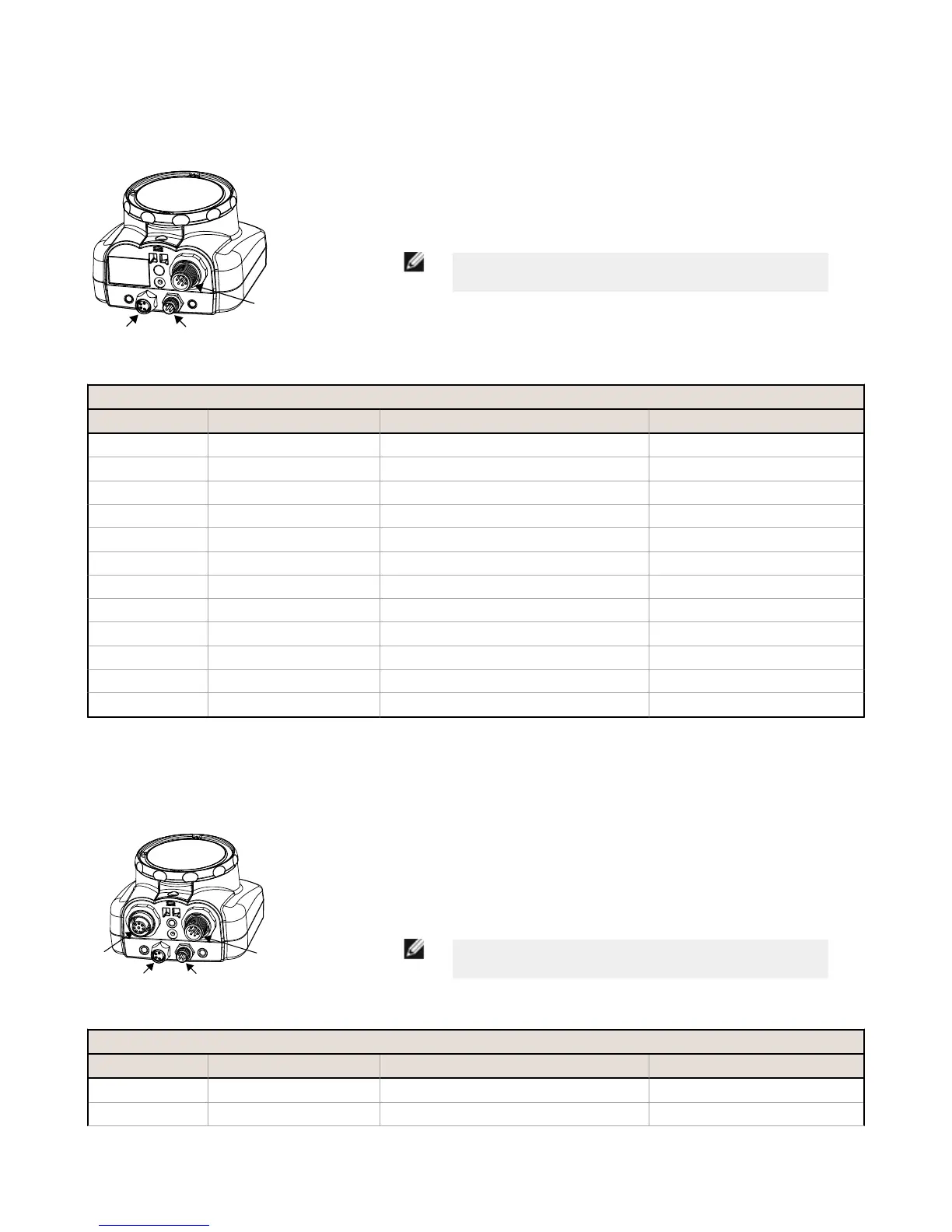

2.2.1 Cable Connections for Integrated Display
The cable connections on the iVu Plus with integrated display are shown below, and power I/O connections (C) are defined
in the Power I/O Connections
table below.
C
A B
A USB Connector
B Ethernet Connector
C Power I/O Connector
NOTE: Micro video lens model shown, C-Mount model
connections are identical.
Power I/O Connections
Pin # Wire Color Description Direction
1 White Output 1 Output
2 Brown 10-30V dc Input
3 Green Output 2 Output
4 Yellow Strobe Out (5V dc only) Output
5 Gray Remote Teach Input
6 Pink External Trigger Input
7 Blue Common (Signal Ground) Input
8 Red Ready Output
9 Orange Output 3 Output
10 Light Blue RS-232 TX Output
11 Black RS-232 Signal Ground Output
12 Violet RS-232 Rx Input
2.2.2 Cable Connections for Remote Display
The cable connections on the iVu Plus with remote display are shown below, and power I/O connections (B) are defined in
the Power I/O Connections table below.
A
B
C D
A Remote Display Connector
B Power I/O Connector
C USB Connector
D Ethernet Connector
NOTE: Micro video lens model shown, C-Mount model
connections are identical.
Power I/O Connections
Pin # Wire Color Description Direction
1 White Output 1 Output
2 Brown 10-30V dc Input
iVu Plus TG Gen2 Image Sensor
8 www.bannerengineering.com - Tel: 763.544.3164
