Basler GigE SERIES User Manual

AW00089317000 Image Acquisition Control
Basler ace GigE 143

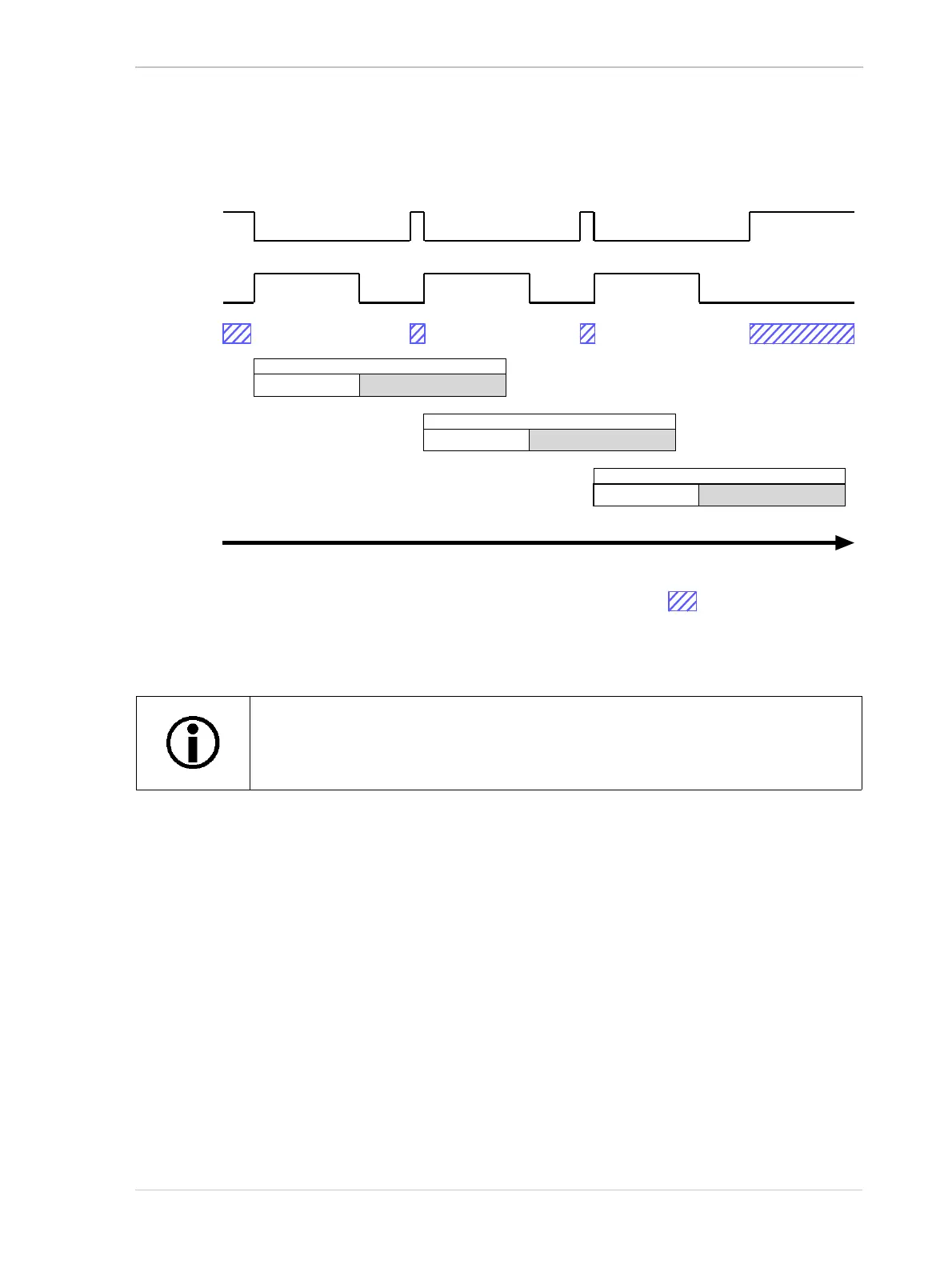

Figure 77 illustrates the Frame Trigger Wait signal on a camera with a global shutter. The camera
is set for the trigger width exposure mode with rising edge triggering and with exposure and readout
overlapped.
For more information about
 event reporting, see Section 10.15 on page 295.
 hardware triggering, see Section 7.4.3 on page 103.
The frame trigger wait signal will only be available when hardware frame start
triggering is enabled.
Frame Acquisition N
Exposure Readout
Time
Frame Trigger
Wait Signal
Frame Acquisition N+1
Exposure Readout
Frame Acquisition N+2
Exposure Readout
ExFSTrig
Signal
= Camera is in a "waiting for
frame start trigger" status
Fig. 77: Frame Trigger Wait Signal

Basler GigE SERIES Specifications

General

Interface	GigE
Lens Mount	C-Mount, CS-Mount
Sensor	CMOS
Mount	C-mount, CS-mount
Power Supply	Power over Ethernet (PoE)
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	Varies by model
