Basler GigE SERIES User Manual

Image Acquisition Control AW00089317000
144 Basler ace GigE
Frame Trigger Wait Signal Details
Valid for All Models
 Except acA1920-25, acA2500-14
 For acA1300-60 and acA1600-60: Only valid if they are operated in the global shutter mode
When the camera is set for the timed exposure mode, the rise of the Frame Trigger Wait signal is
based on the current Exposure Time Abs parameter setting and on when readout of the current
frame will end. This functionality is illustrated in Figure 78.
If you are operating the camera in the timed exposure mode, you can avoid overtriggering by always
making sure that the Frame Trigger Wait signal is high before you trigger the start of frame capture.
Frame Acquisition N
Exposure
Readout
Time
Frame Trig
Wait Signal
Frame Acquisition N+1
Exposure
Readout
Frame Acquisition N+2
Exposure
Readout
ExFSTrig
Signal
Exp. Time Setting
Exp. Time Setting
The rise of the Frame Trigger
Wait signal is based on the
end of frame readout and on
the current Exposure Time
Abs parameter setting
= Camera is in a "waiting for
frame start trigger" status

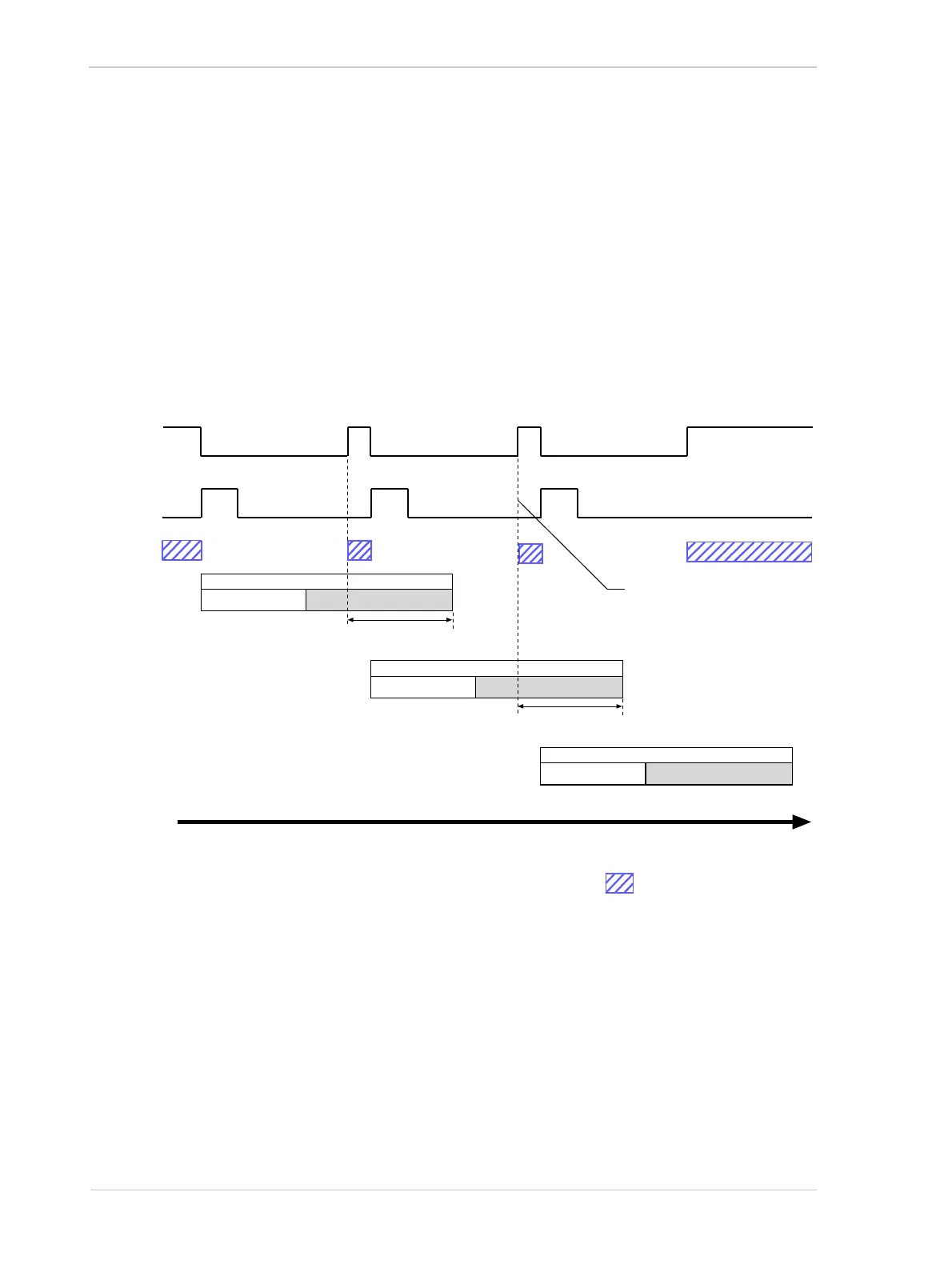

Fig. 78: Frame Trigger Wait Signal with the Timed Exposure Mode

Basler GigE SERIES Specifications

General

Interface	GigE
Lens Mount	C-Mount, CS-Mount
Sensor	CMOS
Mount	C-mount, CS-mount
Power Supply	Power over Ethernet (PoE)
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	Varies by model
