AW00089317000 Standard Features
Basler ace GigE 253
Note that the camera briefly exits the "waiting for frame start trigger" status while the input line
briefly changed its state before the ninth frame start trigger was received..
While frame exposure and readout for the ninth frame start trigger are in progress, the
sequencer feature is disabled. The complete frame is transmitted. The sequencer parameter
values in the active set return to to the values that existed before the sequencer feature was
enabled.

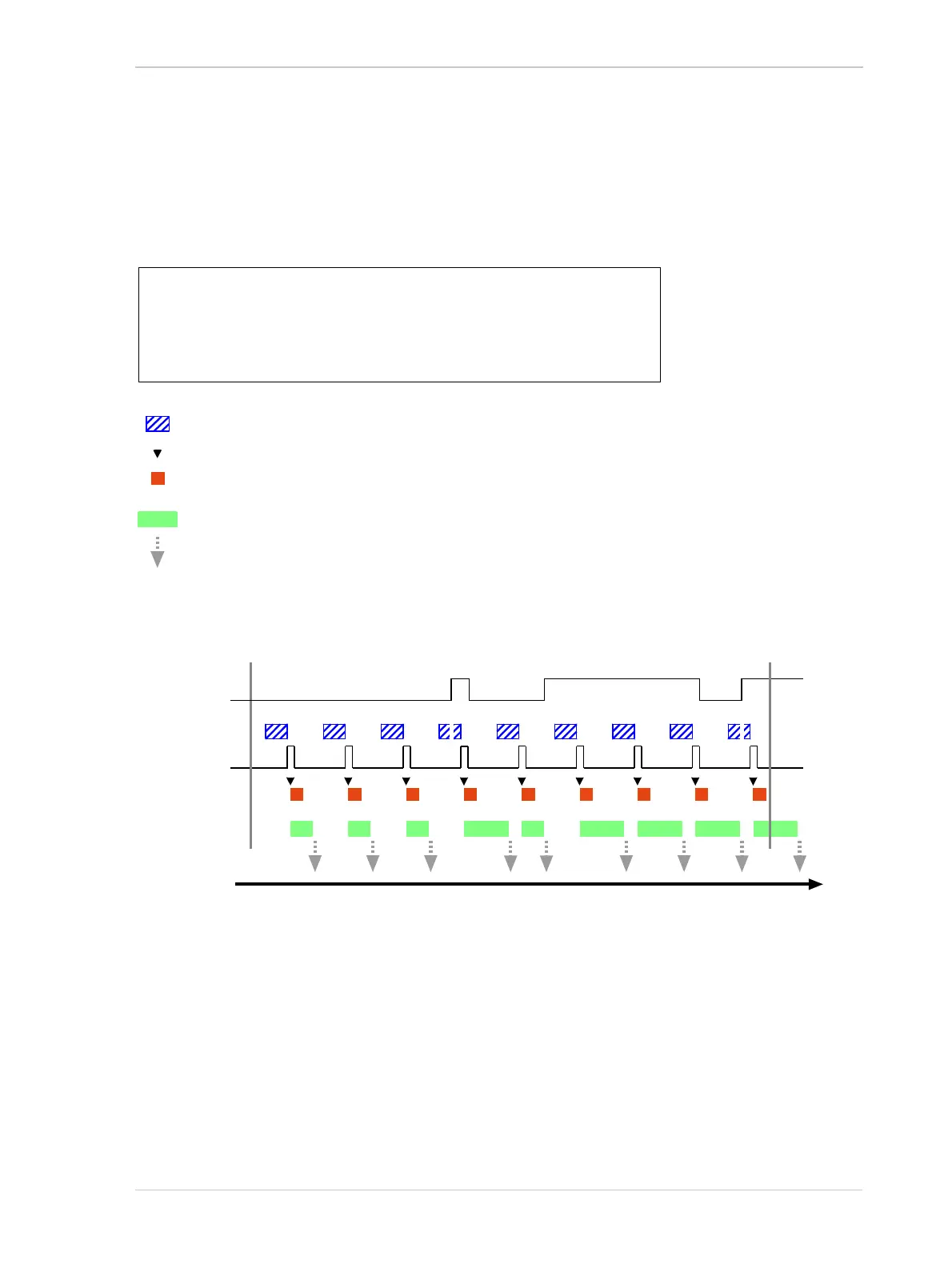

Fig. 102: Sequencer in Free Selection Mode
Time
Signal Applied to
Input Line 1
Frame Start
Trigger Signal
= frame exposure and readout
= frame transmission
Sequencer
Enabled
Sequencer
Disabled
= camera is waiting for a frame start trigger
Use Case: Operation in free selection sequence advance mode.
Sequence sets are selected at will. The selection is controlled by the states
of the input line.
Settings: Sequence Set Total Number = 2
Input line 1 (not set for invert) sets bit 0 of the sequence set address.
= camera selects a sequence set as the current sequence set
= current sequence set that is used for the image acquisition
(the sequence set index number is indicated)
