Basler GigE SERIES User Manual

AW00089317000 Physical Interface
Basler ace GigE 69

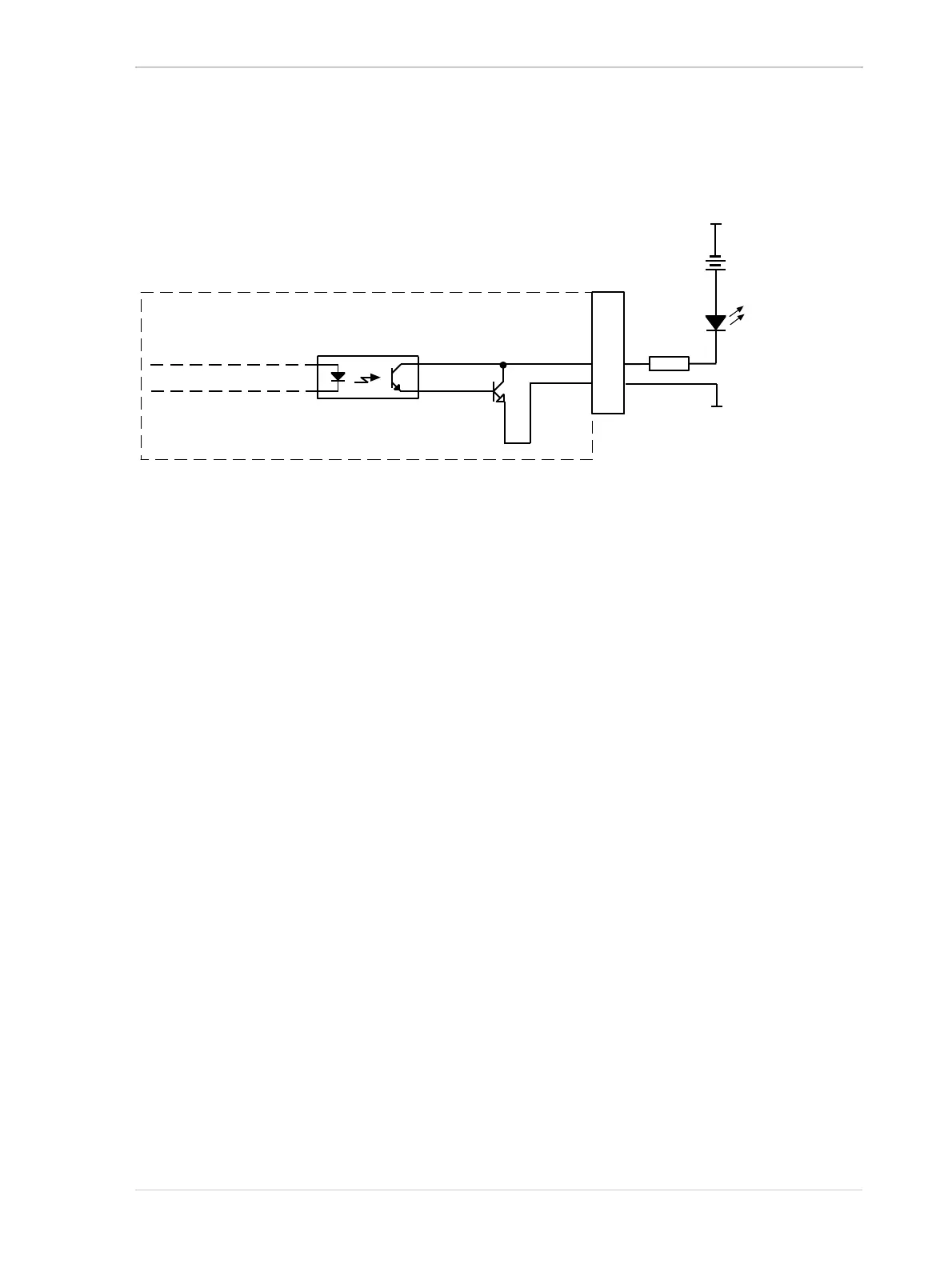

Figure 44 shows a typical circuit you can use to monitor the output line with an LED or an opto-
coupler. In this example, the voltage for the external circuit is +24 VDC. Current in the circuit is
limited by an external resistor.
By default, the camera’s Exposure Active signal is assigned to Output Line 1.
The assignment of a camera output signal to Output Line 1 can be changed by the user. For more
information about assigning camera output signals to Output Line 1, see Section 6.2.1 on page 74.
For more information about
 output line pin assignments and pin numbering, see Section 5.2 on page 56.
 the Exposure Active signal, see Section 7.10 on page 135.
1
2
3
4
5
6
6-Pin
Receptacle
I/O_Out_1
I/O_Gnd
Out_1_Ctrl
Camera
Your Gnd
LED
Output
to You
+24
VDC
Your Gnd
2.2k
Fig. 44: Typical LED Output Signal at +24 VDC for the External Circuit (Simplified Example)

Basler GigE SERIES Specifications

General

Interface	GigE
Lens Mount	C-Mount, CS-Mount
Sensor	CMOS
Mount	C-mount, CS-mount
Power Supply	Power over Ethernet (PoE)
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	Varies by model
