DISASSEMBLY/ASSEMBLY PROCEDURES Chapter 7
7 - 17
10. Remove the I/O Board Assembly (5) from the Case Assembly.
NOTE
Ensure that the RS232 Gasket (18) is present on J14 of the I/O Board
Assembly.
NOTES:
1
12
3
1
4
10
11
13
14
17
ON/OFF SWITCH IS PART
OF I/O BOARD ASSY.
2
CHARGER PORT
CONNECTOR IS PART
OF I/O BOARD ASSY.
3
SPEAKER ASSY IS PART
OF I/O BOARD ASSY.
2
6
15
16
SQUARE
CORNER
7
18
1
3
2
8
9
5

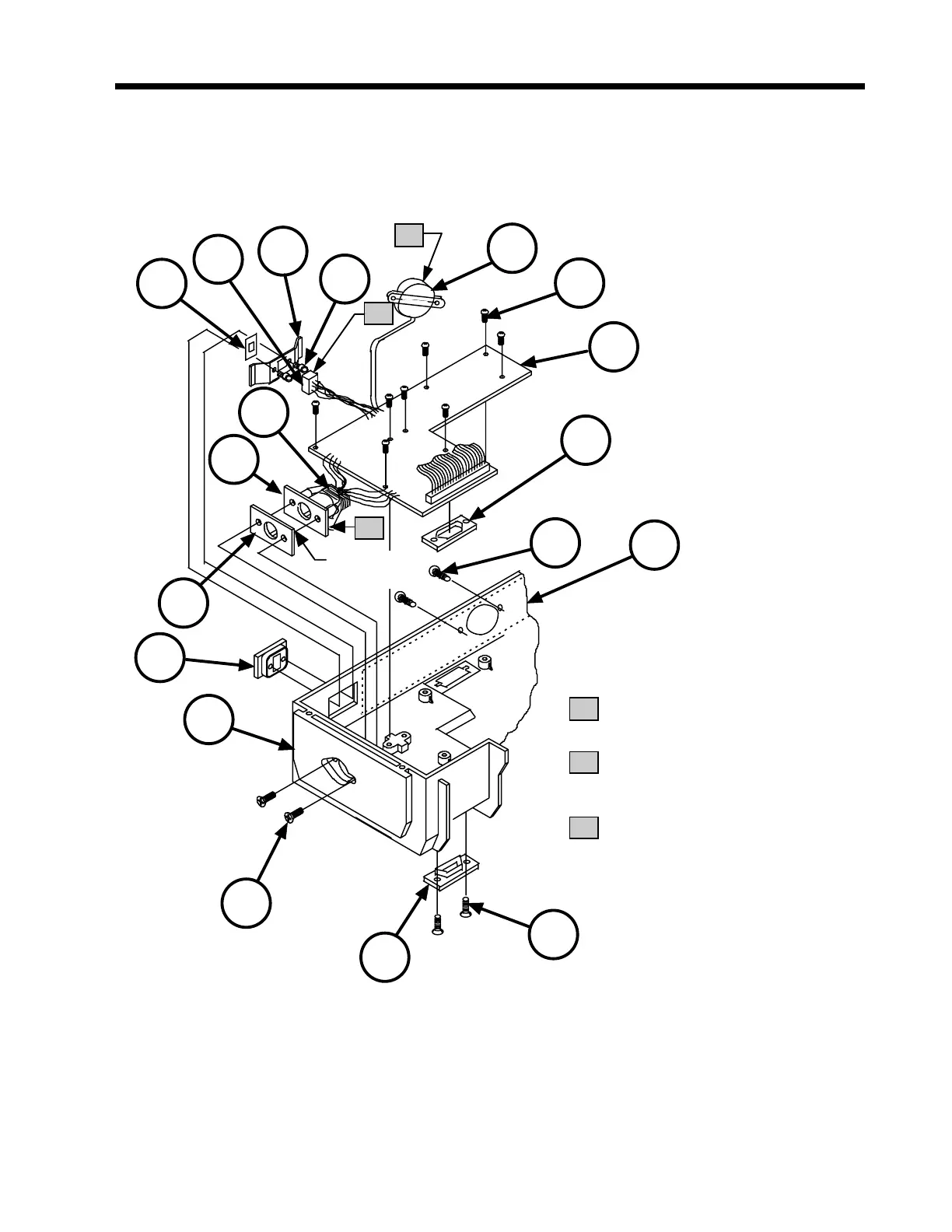

Figure 7-13 I/O Board Assembly Removal
