baxter Auto Syringe AS50 Service Manual

DISASSEMBLY/ASSEMBLY PROCEDURES Chapter 7
7 - 3
7.2.2 Pole Clamp
NOTES
To prevent the pole clamp mounting screw and the stainless steel
washer from separating from the Pole Clamp mounting plate, do not
remove the retaining ring attached to the mounting screw.
The pole clamp cradle is connected to the pole clamp mounting plate
with one screw. If this screw is removed, the cradle may be rotated 90
degrees and reconnected. This feature allows the pole clamp to
mount onto horizontal or vertical IV poles.
1. Loosen the pole clamp mounting screw (1) until the screw fully retracts and separates
from the pump.
2. Remove the Pole Clamp (2).

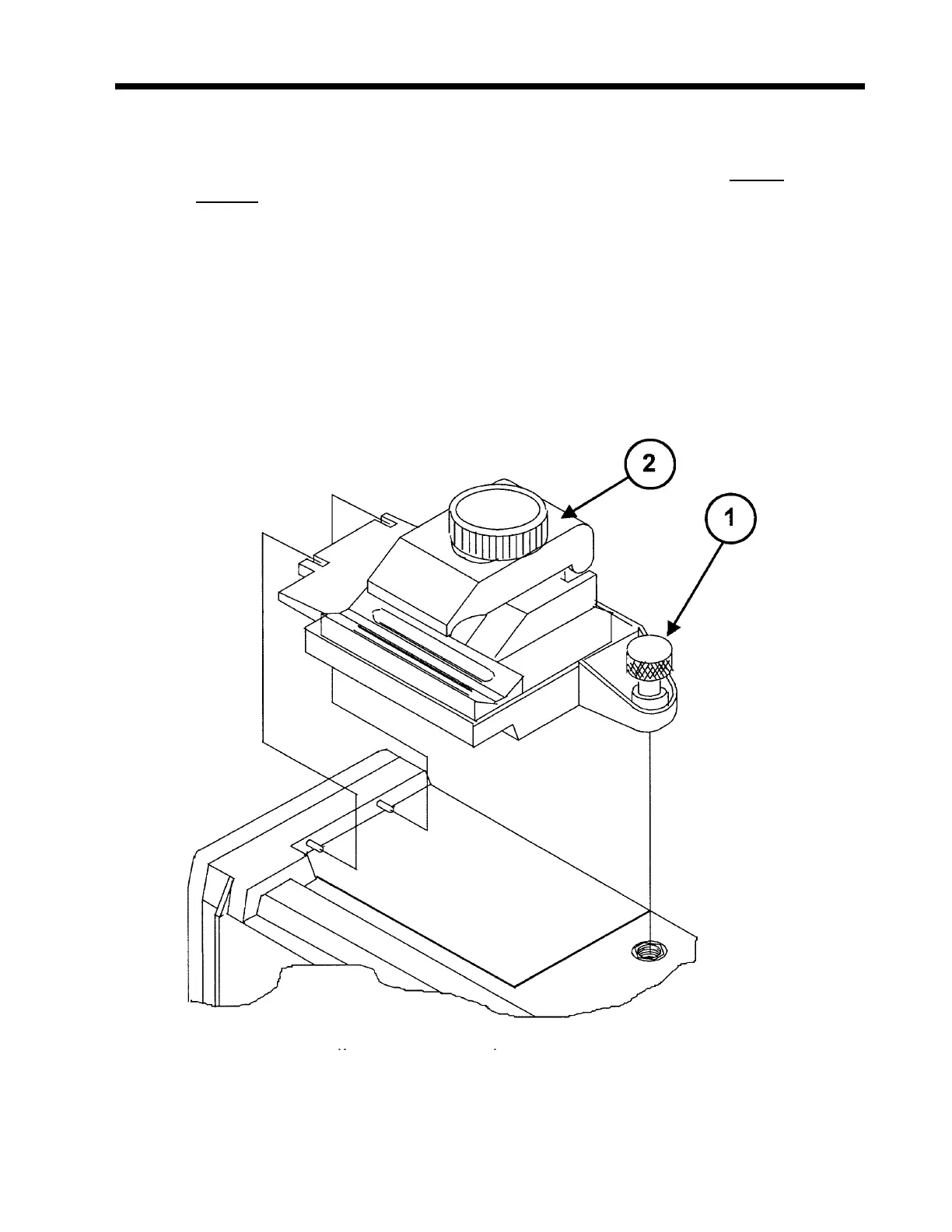

Figure 7-2 Pole Clamp Removal
