baxter Auto Syringe AS50 Service Manual

Chapter 4 FUNCTIONAL TESTS
4 - 10
4.2.11 Calibration Review: (*D*)
NOTE
If the pump fails any part of this review, the pump must be re-
calibrated (refer to Chapter 5).
4.2.11.1 Activating the Calibration Review Mode:
1. Switch the pump “ON” and wait for the pump to complete the POST and prompt for a
selection.
2. Enter Calibration Review access code 321.
3. Observe that DRIVEPOS appears on the display.
4.2.11.2 Plunger Driver Position Review: (*D*)

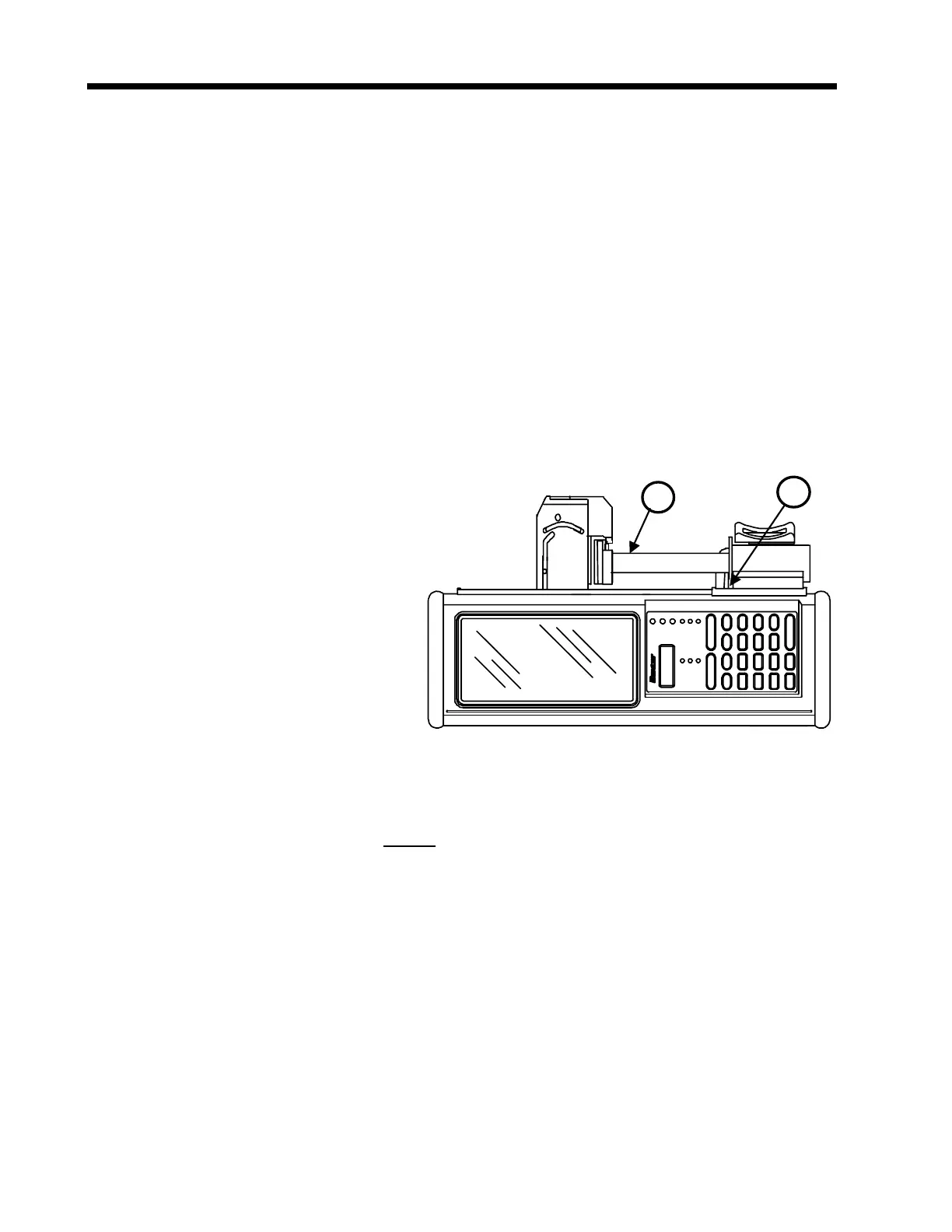

1. Install the calibration fixture
(CAS4001801) (1) into the
barrel clamp ensuring that the
flange of the fixture fits into the
flange slot (2).
2. (*D*) Push the barrel clamp in
until the face contacts the
fixture. Engage the plunger
driver to the fixture. With the
clamp fully closed, verify that
the BATTERY, STANDBY,
and LOCK LEDs are all “ON.”
This confirms that the fixture is
mounted properly.
NOTE
After installing the fixture, do not touch the plunger face or the fixture.
3. (*D*) Observe the display and record the inches number value on the data sheet.
Verify that this value is between 2.792 and 2.804 inches (2.792 < inches value <
2.804).
4. (*D*) Remove the fixture from the pump and install the CAS4002801 fixture into the
barrel clamp. Close the clamp and engage the plunger driver to the fixture. Verify that
the BATTERY, STANDBY, and LOCK LEDs are all “ON.”
5. (*D*) Observe the display and record the inches number value on the data sheet.
Verify that this value is between 0.666 and 0.678 inches (0.666 < inches value <
0.678).
1
2
