REPAIR PARTS APPENDIX C
C - 3
C.2.2 Pole Clamp Assembly
Table C-B Pole Clamp
Part Description Baxter® Part
Number
Quantity per
Assembly
Pole Clamp Assembly AAS5001500RP 1
The pump is provided with a removable IV pole clamp. The typical usage is for mounting
the pump to a vertical pole. To adapt the pole clamp for use on a horizontal pole, first
remove the pole clamp from the pump. Remove the screw on the back side of the pole
clamp. Remove the jaw portion of the pole clamp, rotate 90 degrees and replace. Note that
it is notched to fit the housing properly. Tighten the screw and reinstall the pole clamp.

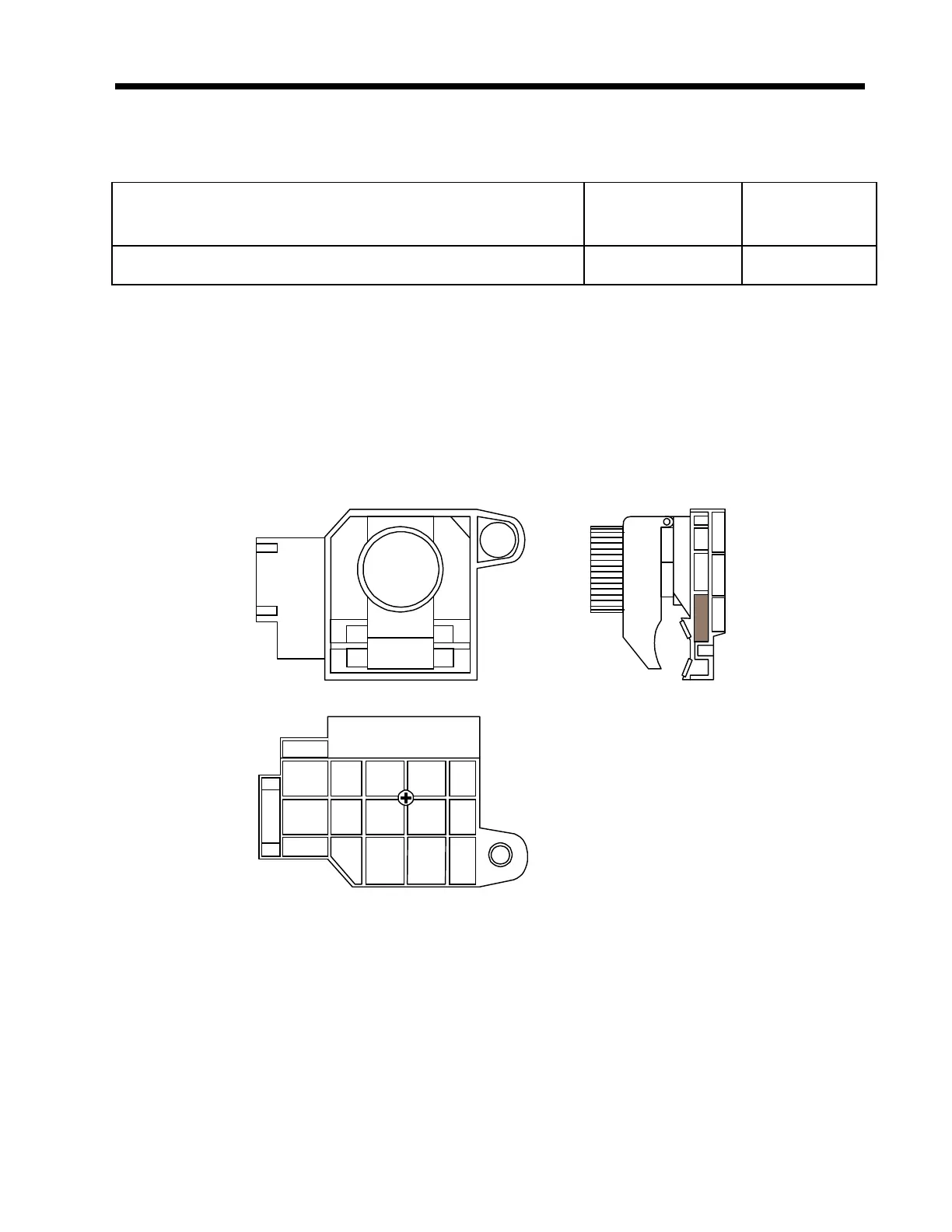

Figure C-B Pole Clamp
