DISASSEMBLY/ASSEMBLY PROCEDURES Chapter 7

7 - 19

7.2.11 Pole Clamp Hardware

1. Separate the Top Cover Assembly from the Case Assembly as described in section

7.2.5.

2. Remove the pole clamp hardware (Hex Insert (1), 10-32 x .25 Pan Head Screw (2), and

.036 Thick Flat Stainless Steel Washer (3)) from the case.

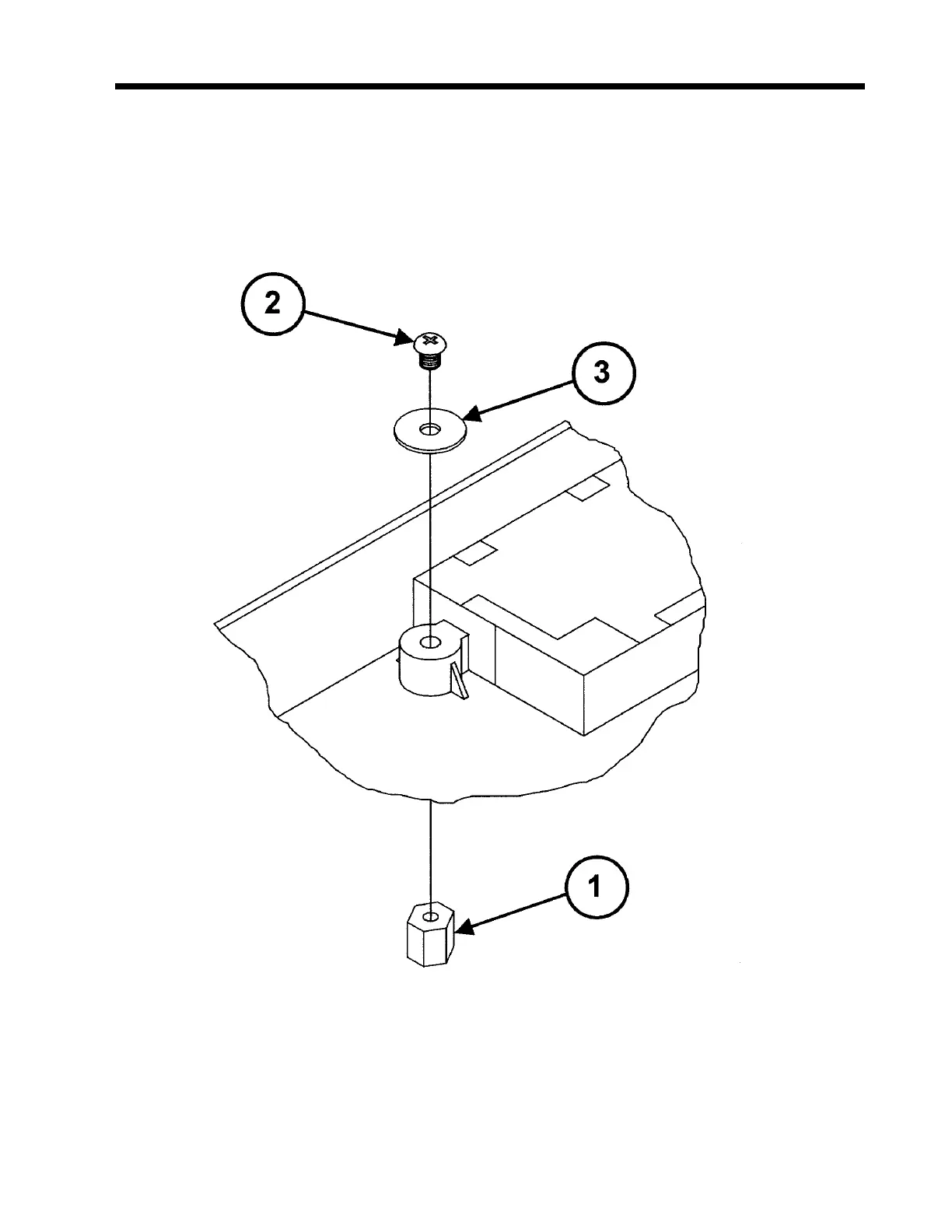

Figure 7-14 Pole Clamp Hardware Removal
