baxter Auto Syringe AS50 Service Manual

Chapter 7 DISASSEMBLY/ASSEMBLY PROCEDURES
7 - 2
7.2.1 End Caps
• To remove each End Cap (1), lift up the corners of the End Cap (1) and slip them over
the molded flanges. During reassembly, ensure that the two feet of each End Cap (2)
face towards the back of the pump.

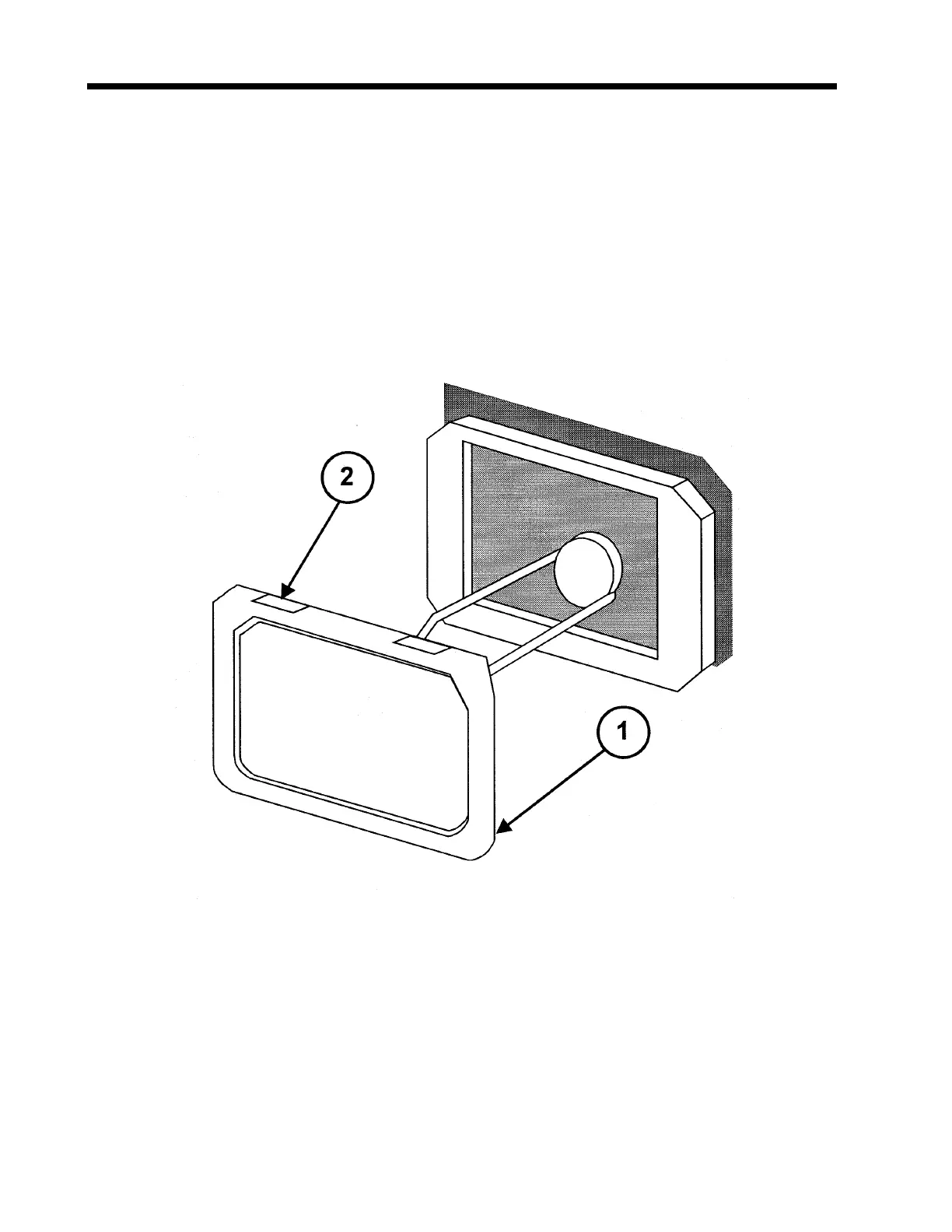

Figure 7-1 End Cap Removal
