APPENDIX C REPAIR PARTS
C - 10
Table C-G Upper Plunger Assembly
Figure
ID Number
Part Description Baxter® Part
Number
Quantity per
Assembly
G1 Upper Plunger Assembly
(Includes items G2 and G3)
AAS5001506RP 1
G2 Plunger Driver Slide DAS5001455 1
G3 Stepped Pin BAS5001406 1
G4 Plunger Driver Decal BAS5001017 1
G5 Lever Pin BAS5001408 1

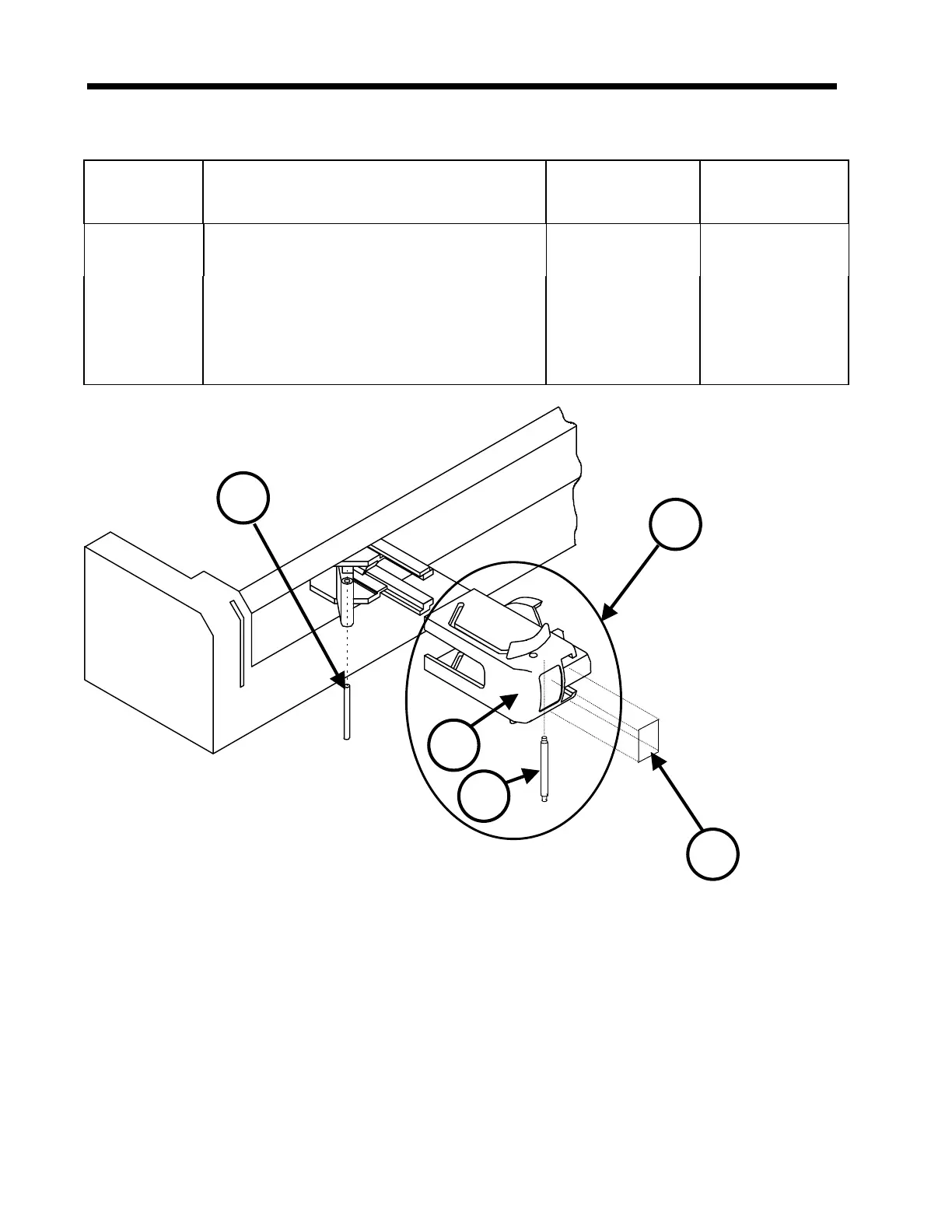

Figure C-G Upper Plunger Assembly
G5
G4
G2
G3
G1
