62 pro+ Surface Instruction for Use (209196 REV 8)
CAREASSIST and ADVANTA 2 Beds
20. On the outside of the footboard, use the alcohol-based cleaner to
clean the area where the status indicator mount is to be installed
(this includes new footboards). Let the area dry.

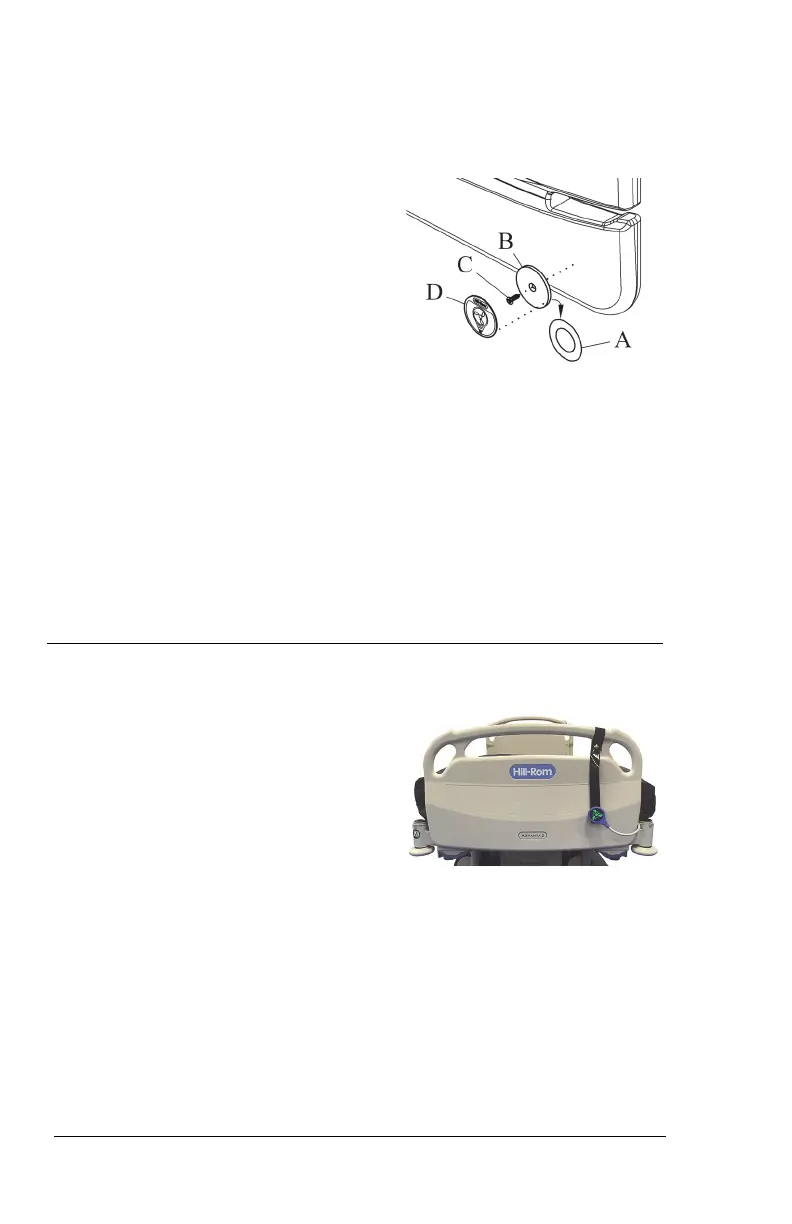

21. Remove the adhesive covering (A)
from the metal plate (B) of the
mount assembly. Firmly press the
metal plate into position for 10
seconds.
22. Install the screw (C) to attach the metal plate (B) to the footboard.
Installing the screw on to the footboard will not void the warranty of
the product.
23. Use the alcohol-based cleaner to clean the metal plate (B). Let the
plate dry.
24. Remove the adhesive covering from the status indicator label (D).
25. Make sure the label (D) is in the correct orientation, then install the
label on to the metal plate (B). Firmly press the label into position for
10 seconds.
Step 3B: Install the MCM Status Indicator Mounting Kit
(Rental Only)
The mount for the MCM status indicator
(status indicator) is to be installed on
the outside of the footboard. The rental
MCM indicator strap can be put on the
right or left side of the footboard.
26. Install the footboard.
Make sure the status indicator cord is not between the installed
footboard and bed.
