42 pro+ Surface Instruction for Use (209196 REV 8)
VERSACARE Bed—pro+ Surface Installation Instructions

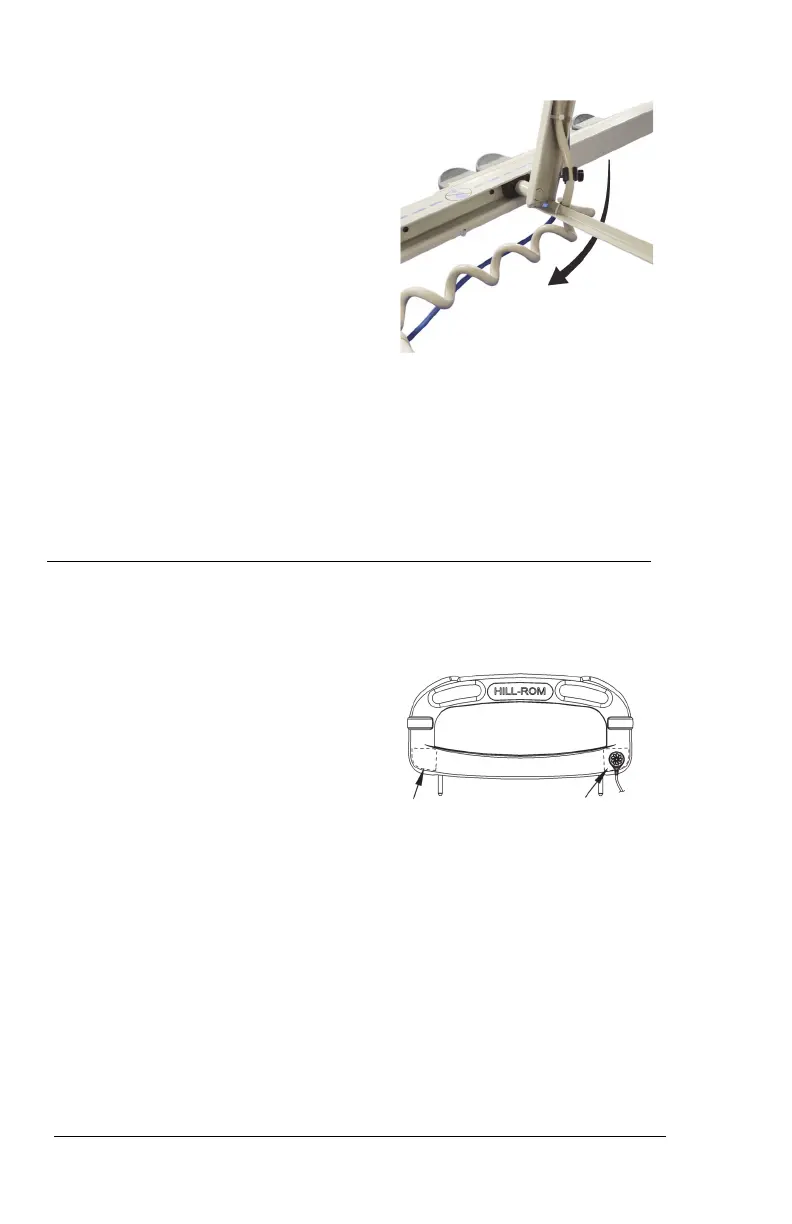

16. Route the power cord under the lift
arm weldment, and between the
head-end casters.
17. Go to the applicable section:
• “Step 3A: Install the MCM Status Indicator Mounting Kit
(Capital Only)” on page 42.
or
• “Step 3B: Install the MCM Status Indicator Mounting Kit (Rental
Only)” on page 43.
Step 3A: Install the MCM Status Indicator Mounting Kit
(Capital Only)
The mount for the MCM status
indicator (status indicator) is to be
installed on the outside of the
footboard, on either the bottom-left or
bottom-right.
18. Install the footboard.
Make sure that the status indicator cord is not between the
installed footboard and bed.
19. Make sure the status indicator can reach the mount location before
you start to install the mount assembly.
20. On the outside of the footboard, use the alcohol-based cleaner to
clean the area where the status indicator mount is to be installed
(this includes new footboards). Let the area dry.
To Next Page
