VERSACARE Bed—pro+ Surface Installation Instructions

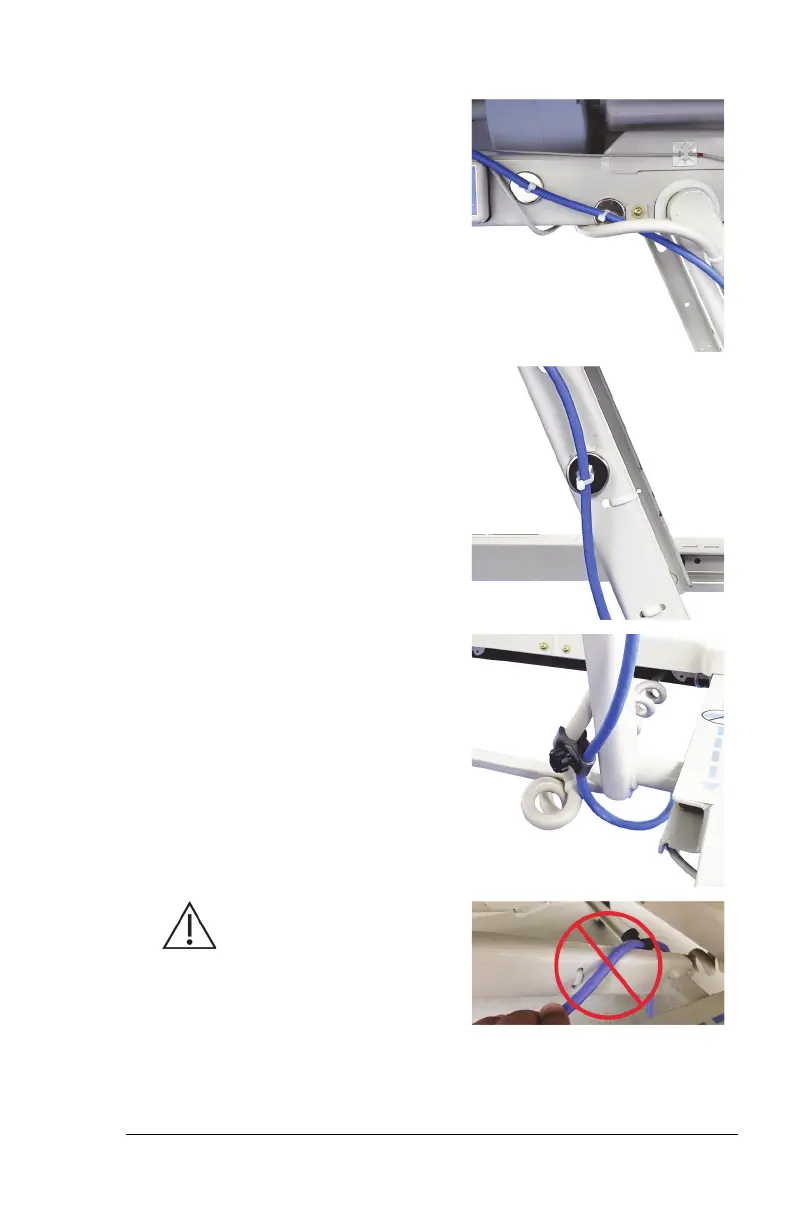

13. Attach two cord magnets to the
upper frame at these locations:
• Approximately 4.75" (12 cm)
from the foot-end side of the
lift arm pivot.
• By the screw closest to the lift
arm pivot. Route the power
cord behind the bed power
cord that is attached to the lift
arm.
14. Attach one cord magnet to the
middle of the upper lift arm.
15. Put the straight part of the bed
power cord into the cord clamp
that is on the surface power cord.
Use the knob to tighten the cord
clamp.
Gently pull on the bed power cord
to make sure the cord clamp is
attached to the bed power cord.
Caution—To help prevent
equipment damage, make sure the
power cord is routed under the lift
arm weldment.
