Chapter 5 Getting Started
Installation Overview
Building Height Considerations
• The ideal scenario for placement of the carriage onto the rails is:
Construct the frame.
Set the rail spacing from inside to inside at 125’’.
Level the legs, head beams, and rails.
Load the carriage onto the rails.
Note: Under this ideal scenario, there is plenty of clearance for the carriage to fit through the
door.
Note: If the door is not 12 feet wide, but there is room to pull the carriage in long ways, spin it
back into the operating orientation, and then lift it onto the rails then the ideal process
above can still be followed.
• If the ideal conditions above cannot be achieved, then
The entrance rail on the opposite side of the CAT Track must be removed from the
frame assembly.
In the center of the bay, the carriage must be raised up and placed on the exit rails.
The carriage must be pushed all the way to the end of the exit rails and secured in
place.
The entrance rail is then to be reattached to the frame assembly.
Release the carriage assembly.
Note: Higher ceilings make service and repair easier. Heaters, lights and other items need to be
placed clear of legs, head beams, and machine travel.

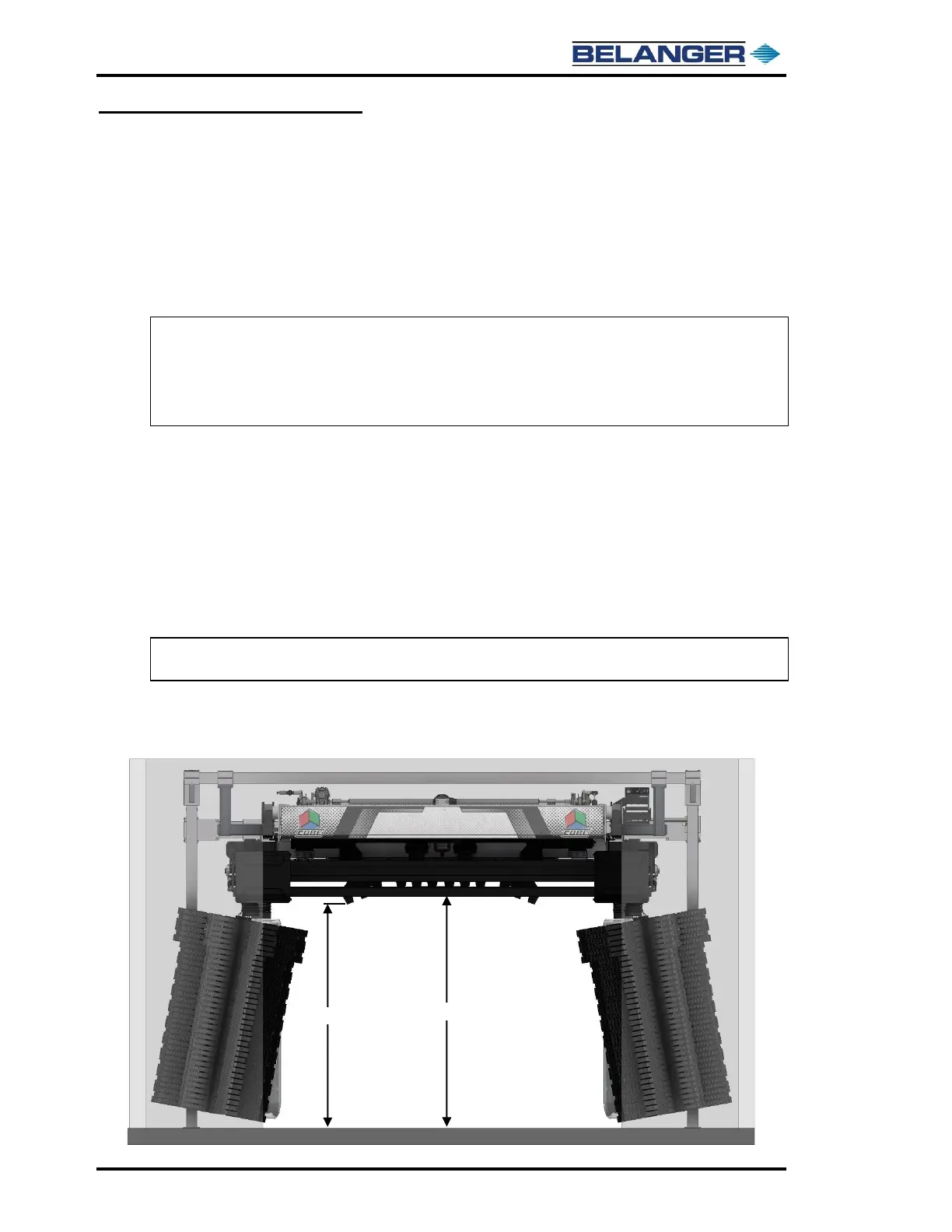

Vehicle Height Considerations
The maximum vehicle height recommended is 82” (6’-10”) tall.
