Chapter 5 Getting Started
Installation Overview
Building Height Considerations
The following considerations address how the Carriage will be placed onto the Rails. The
procedure for installation can be found in the installation section of this manual. Two (2) forklifts
are needed to complete the installation of the Carriage onto the Rails.
• There are 2 possible scenarios for accommodating various bay heights.
IDEAL HEIGHT SCENARIO: The ideal bay height for placing the Carriage on the Rails,
preferably the Entrance Rails, would be the height at which the bottom of the head beams
can be raised to the specified distance of 127’’ off the floor. This height is found by
measuring the height from the top of the forks on the forklift to the highest point on the

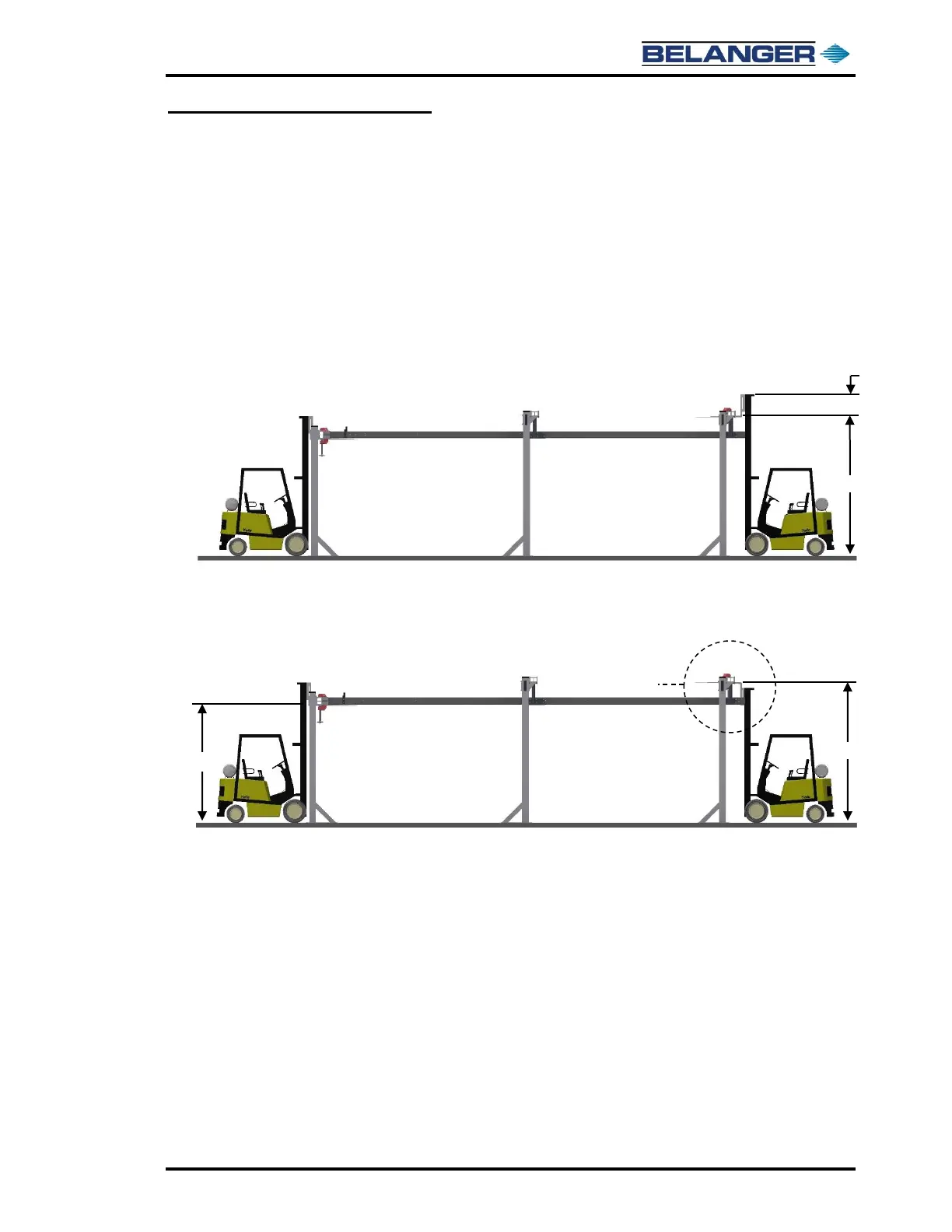

forklift mast and adding the 127’’. See the image below.
ALTERNATE SCENARIO: The forks may need to be flipped. If the forks need to be
flipped, then the head beams and rails need to be lifted up to 48’’ and clamped to the
legs before flipping the forks. See the image below.
To Next Page
