Chapter 6 Frame and Carriage Assembly
Frame Assembly: Attaching Leg Assemblies
4) Locate the six (6) Leg Assemblies. The four (4) longer Legs are for the Entrance and Middle
of the Frame Assembly. The two (2) shorter Legs are for the exit of the Frame Assembly.
5) Locate the Cube® Accessory Kit 111908 and retrieve the six (6) Leg Caps. Install the Caps
onto the top of each of the Leg Assemblies.
6) Orient the Leg Assemblies as follows:
➢ Entrance Legs: The baseplates (feet) are to face into the bay.
➢ Middle Legs: The feet are to face toward the exit of the bay.
➢ Exit Legs: The feet are to face into the bay.
7) Starting with the Entrance and Middle Legs, orient the Legs as specified above and place a
Leg Assembly into each of the Leg Clamps.
8) Using the Half Clamp, Clamp Spacer and Fasteners tighten the Clamp Assemblies around
each of the Entrance and Middle Legs.
Exit
Entrance
Middle Legs (2)
Entrance Legs (2)
Leg Assembly

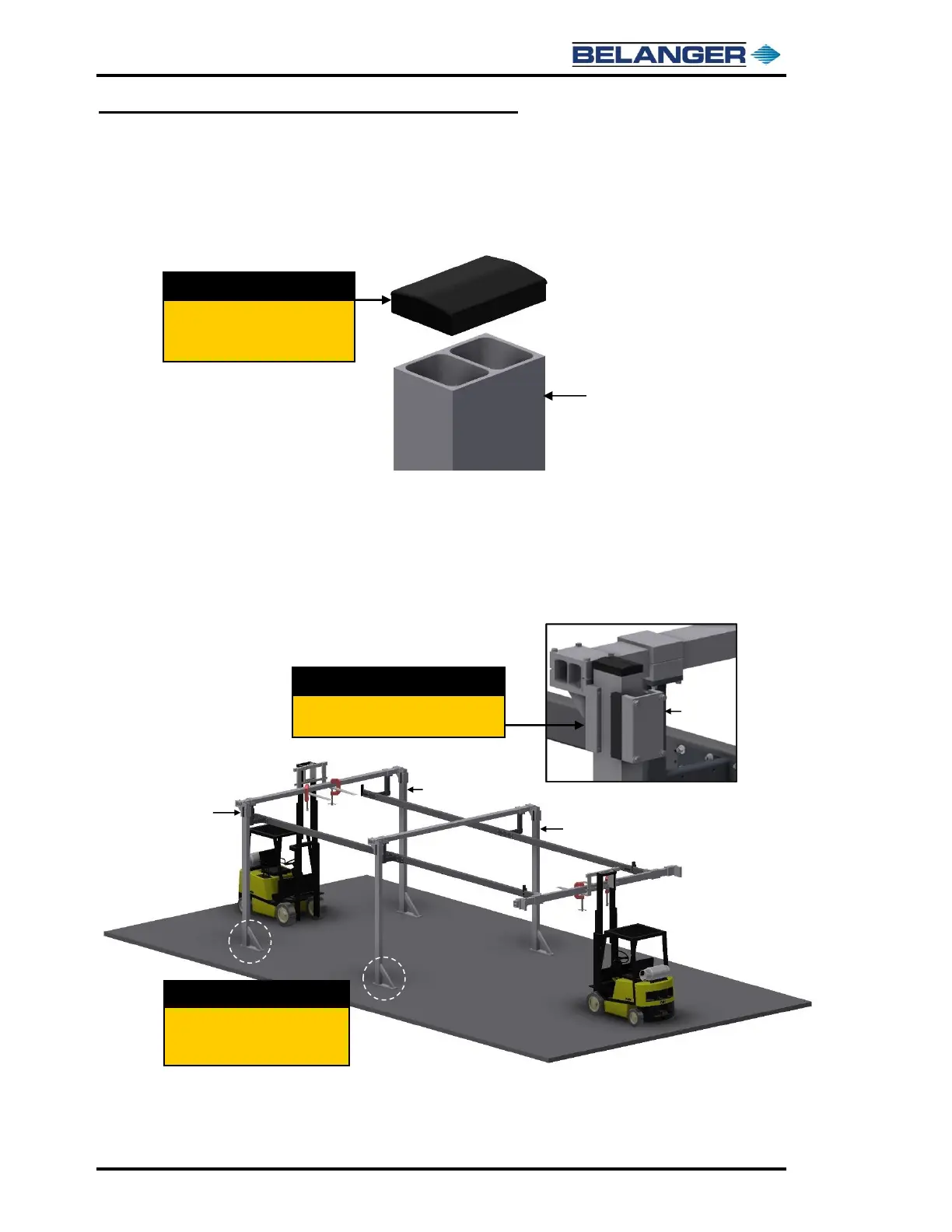

Step 5:
Locate the six (6) Leg Caps in the
Cub Accessory Box and slide them
onto the top of the Leg Assemblies.
Step 8:
Tighten the Clamp Assemblies around
each of the Entrance and Middle Legs.
Half Clamp
& Spacer
Leg Clamp (4)
Step 7:
Secure Entrance and Middle Legs
to Frame with feet facing the exit
of the bay.
