Chapter 6 Frame and Carriage Assembly
Carriage Prep
Attach the CAT Track Support Assembly to the Frame
2) Locate the CAT Track Support Assembly.
3) Retrieve the four (4) CAT Track Supports and fasteners.
4) Apply anti-seize to the bolt threads for the CAT Track Supports.

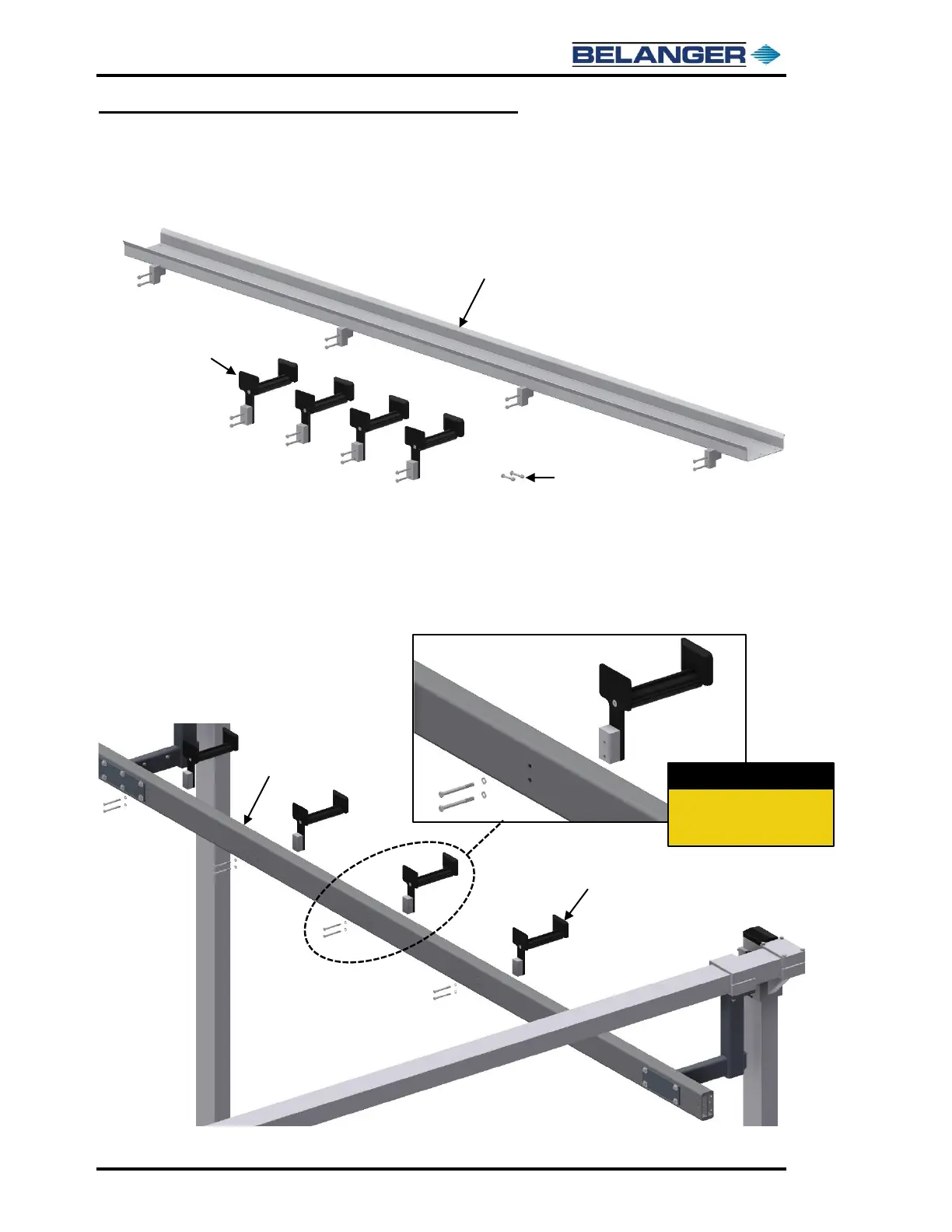

5) Attach the CAT Track Supports to the Entrance Rail using the pre-drilled holes, as shown in
the image below.
CAT Track Trough
with Fasteners
CAT Track Supports
with Fasteners
3/8” Bolt & Fasteners
to secure Cable Carrier
to Frame
Entrance Rail
CAT Track Supports
with Fasteners
Apply anti-seize to bolt
threads and attach CAT Track
Supports to the Entrance Rail.
Step 4 & 5:
