Chapter 6 Frame and Carriage Assembly
Carriage Prep
Attach the CAT Track Support Assembly to the Frame
6) Retrieve the CAT Track Trough and fasteners.
7) Apply anti-seize to the bolts and attached the CAT Track Trough to the Exit Rail using the
pre-drilled holes in the rail, shown in the image below.

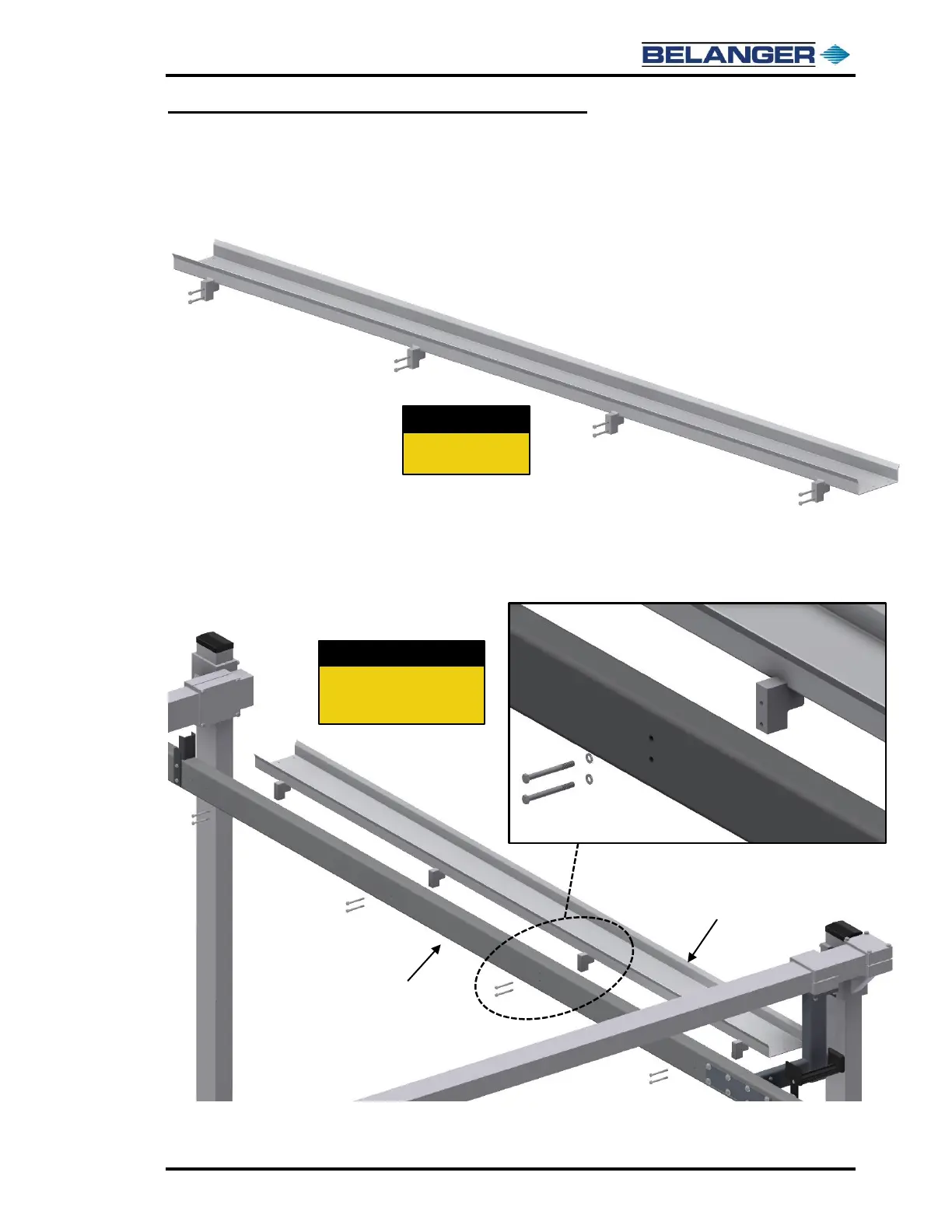

Retrieve CAT Track
Trough and fasteners.
Step 6:
Apply anti-seize to bolt
threads and attach CAT Track
Trough to the Exit Rail.
Step 7:
CAT Track Trough
with Fasteners
Exit Rail
