Chapter 6 Frame and Carriage Assembly
Carriage Placement on Frame Assembly: Preferred Method

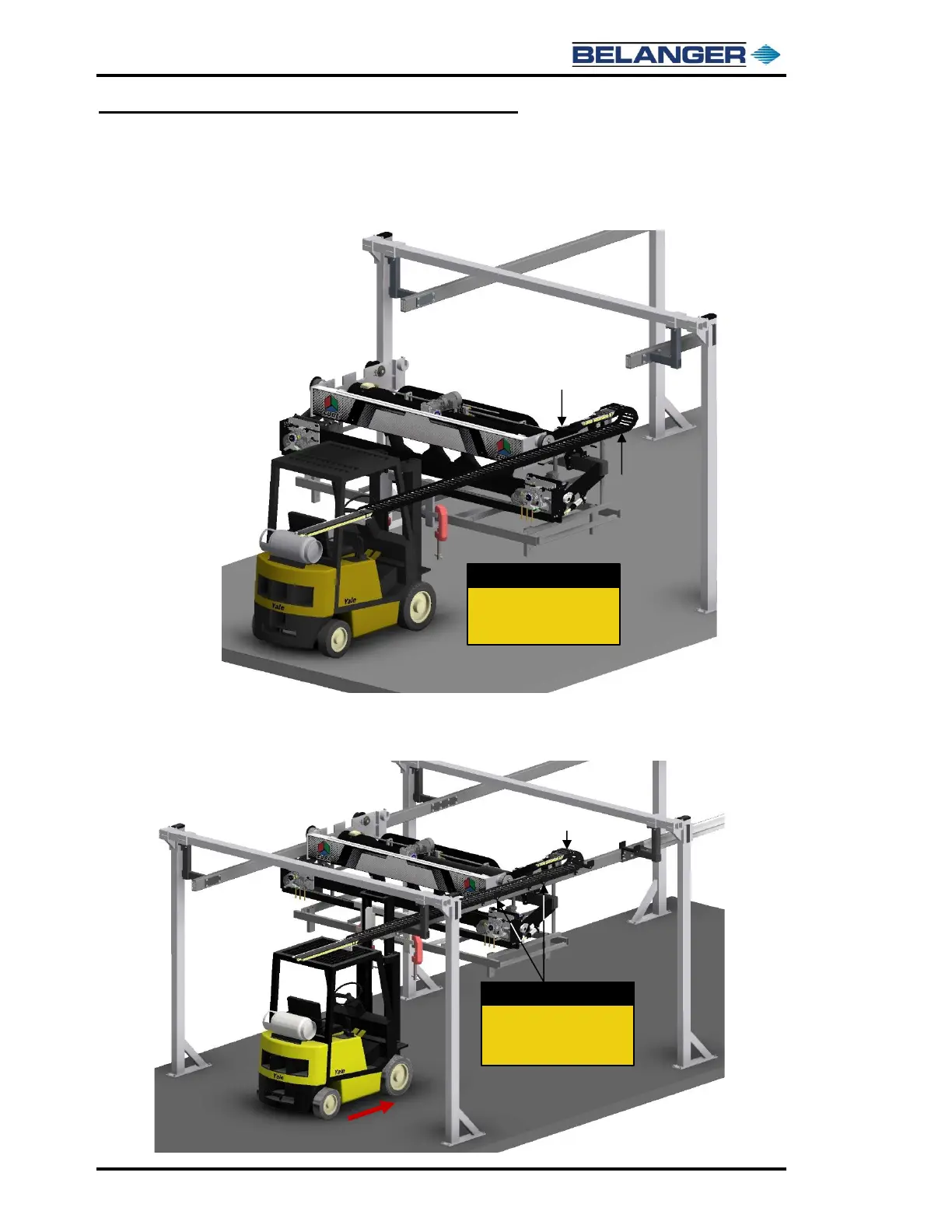

4) Unroll the Cable Carrier, as shown below, before raising the Carriage up to load on the
Entrance Rails. Notice, one end of the Cable Carrier has already been secured to the CAT
Carriage Weldment on the Carriage Head.
5) Raise the Carriage up and align the Cable Carrier with the CAT Track Supports, move the
Forklift forward until the Cable Carrier is securely on two of the Track Supports.
Cable Carrier
Unroll Cable Carrier before
raising Carriage up to load
on Entrance Rails.
Step 4:
Cable Carrier is
attached to
Carriage here.
Cable Carrier
Raise Carriage then align
and place Cable Carrier on
at least two Track
Supports.
Step 5:
Entrance
Entrance
