Chapter 6 Frame and Carriage Assembly
Carriage Placement on Frame Assembly: Preferred Method

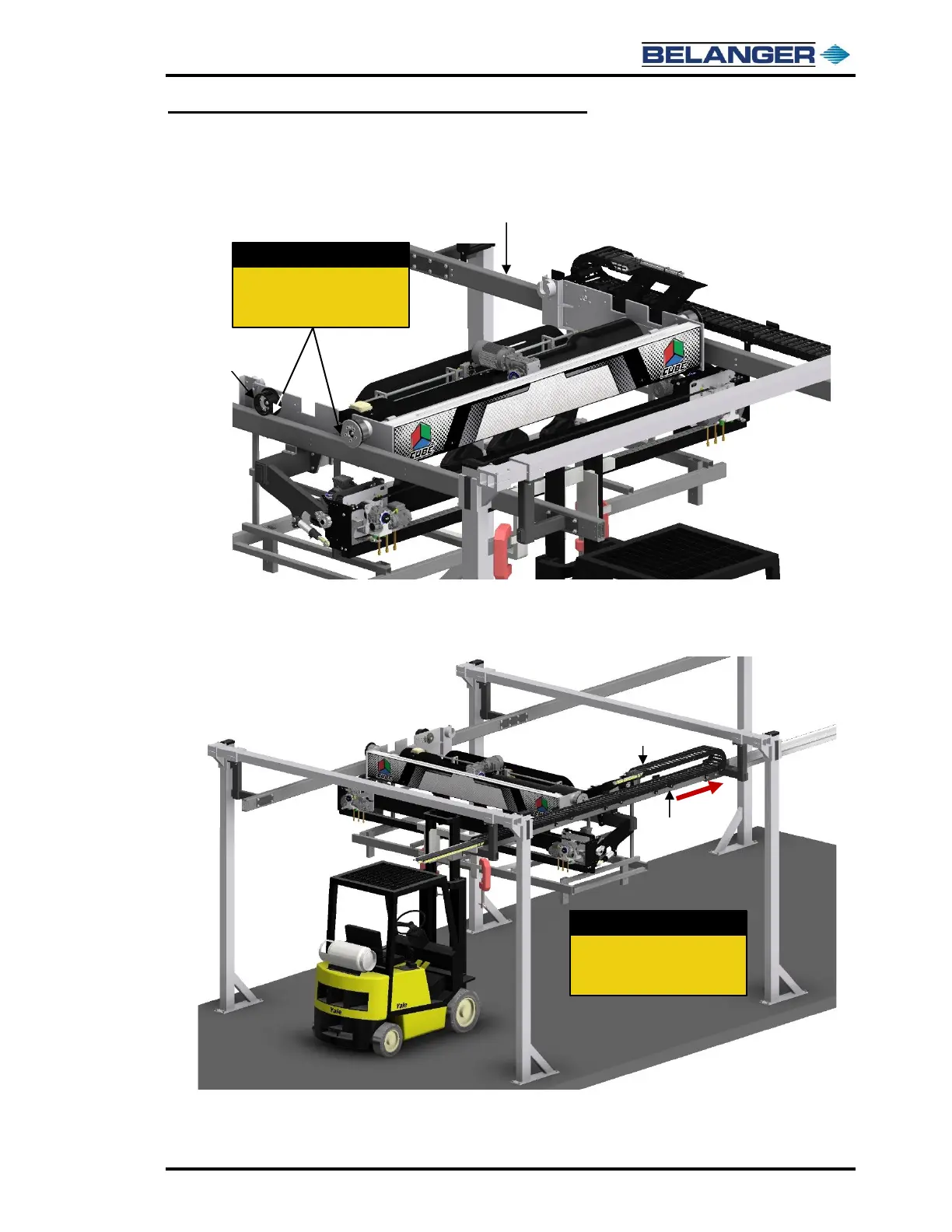

6) Lower the Carriage until ALL the Carriage Rollers are setting squarely on top of the Entrance
Rails which should be confirmed by a person on each side of the Frame Assembly.
7) With the Carriage on the Rails and the Cable Carrier on two of the Track Supports the two
people managing the Cable Carrier can push it down onto the other two Supports.
Lower Carriage until all four (4)
Carriage Rollers are squarely on
the Rails, confirm on each side.
Have the two people managing
the Cable Carrier push it down
onto the other two Supports.
To Next Page
