Chapter 6 Frame and Carriage Assembly
Carriage Placement on Frame Assembly: Preferred Method

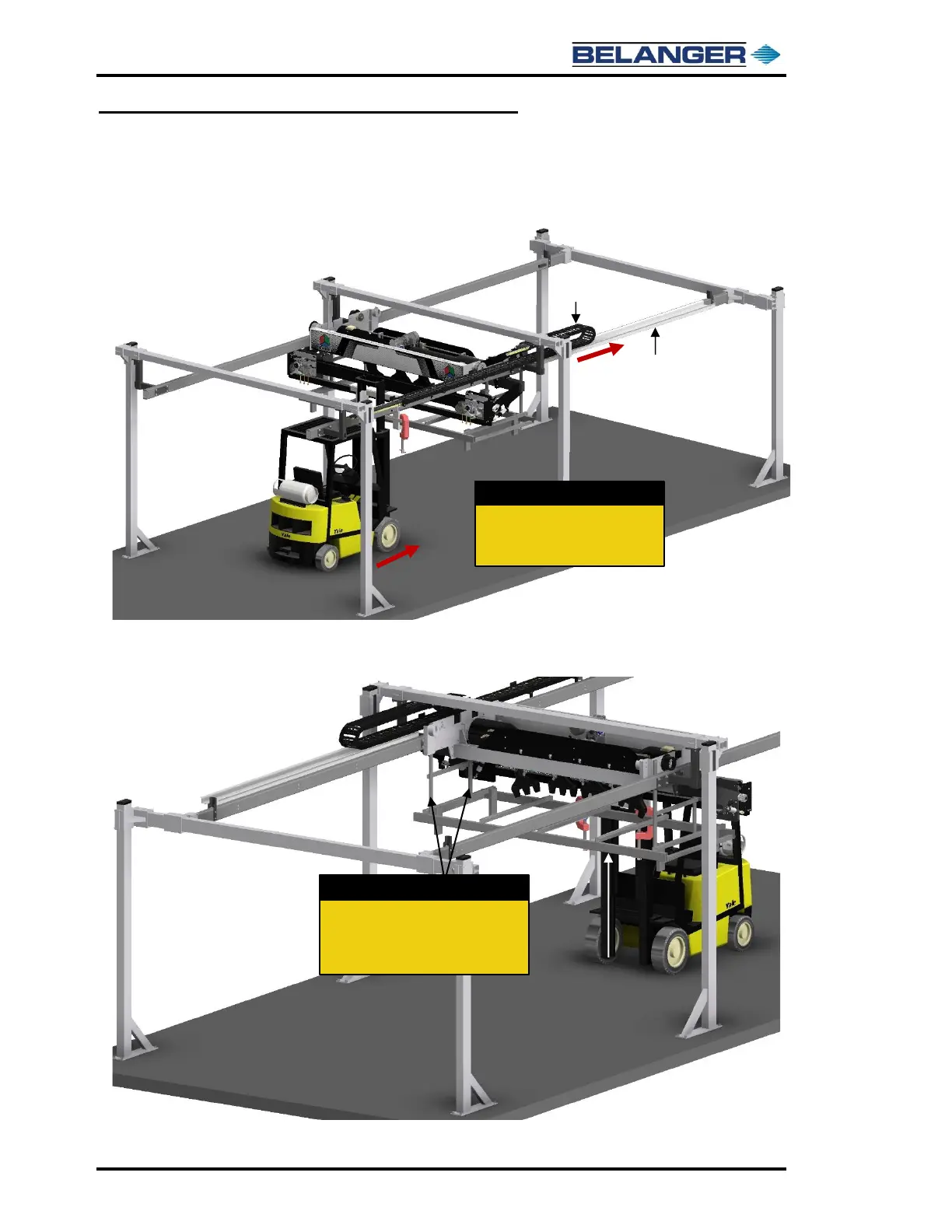

8) Using the Forklift slowly move the Carriage to the middle of the bay. As the Carriage is being
moved down the Rails, guide the Cable Carrier from the Track Supports into the CAT Track
Trough.
9) Remove the Shipping Frame from the Carriage Assembly.
Detach the Shipping Frame from the
Carriage by removing the fasteners at
the top of these upright tubes on both
sides of the Carriage.
Move the Carriage to the middle of
the bay and guide the Cable
Carrier into the CAT Track Trough.
To Next Page
