Chapter 6 Frame and Carriage Assembly
Carriage Placement on Frame Assembly: Alternate Method
3) Four (4) people are needed to safely load the Carriage and Cable Carrier onto the Exit Rails
of the Frame. The responsibilities of each person are as follows:
➢ Person 1: Drive the forklift.
➢ Person 2: Initially support the Cable Carrier and Cables. Then support the cables, hoses,
and airlines once the Cable Carrier is on the CAT Supports to prevent the lines from
dragging on the ground.
➢ Person 3: Needs to guide the Cable Carrier into CAT Track Trough and verify that the
Carriage Rollers are adequately on the Exit Rail.
➢ Person 4: Will be on the opposite side of the Frame to verify the Carriage Rollers are
adequately on the Exit Rail.

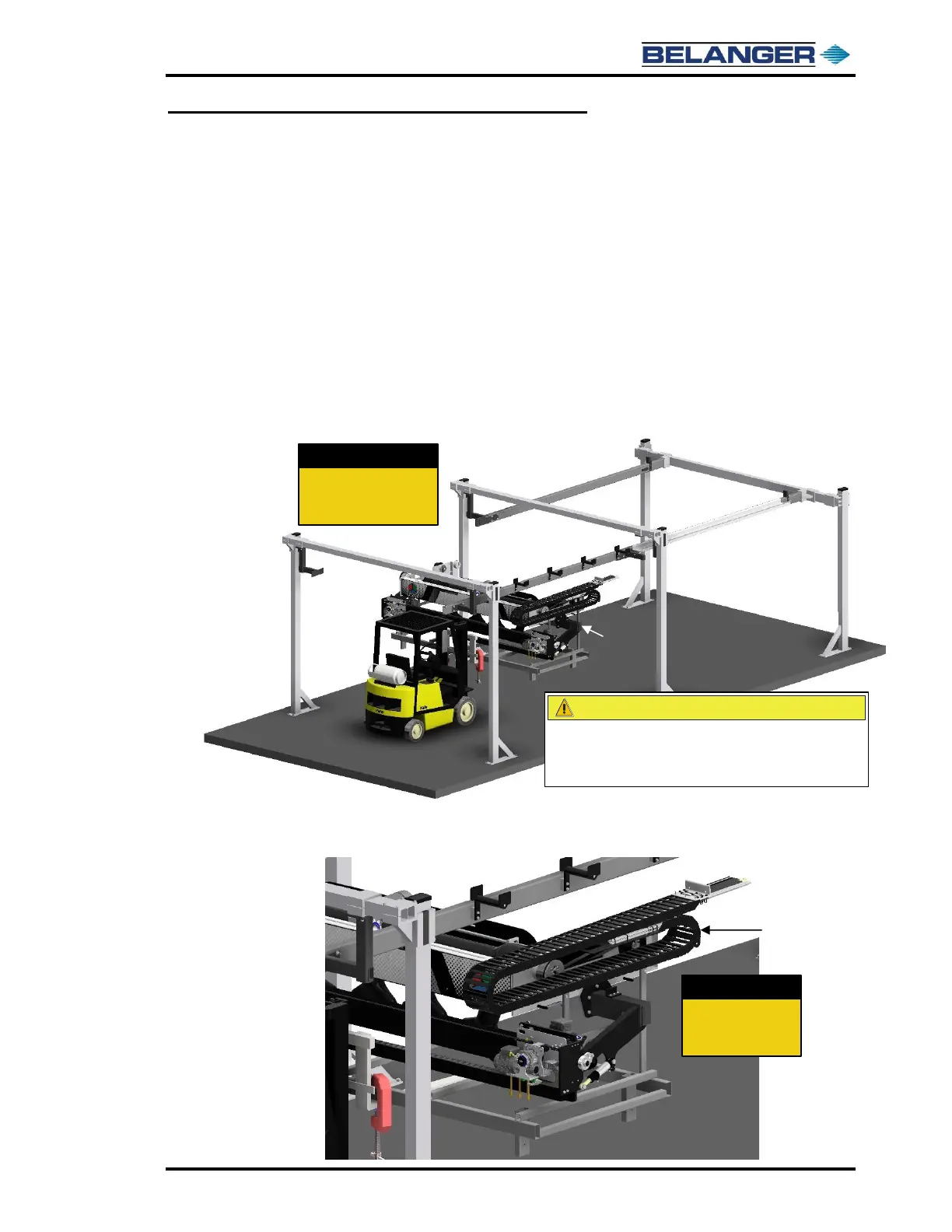

4) Using the Forklift raise the Carriage Assembly up and maneuver the forklift to just in front of
the Exit Rails or Middle Legs inside the bay.
5) Locate the CAT Track Cable Carrier on the Carriage, carefully remove the tie straps that
kept it rolled up, shown below, during shipping.
Use a spotter to help position the Carriage
as you raise it up and guide it onto the
Rails. Be sure to keep the forks level.
