Chapter 6 Frame and Carriage Assembly
Carriage Placement on Frame Assembly: Alternate Method

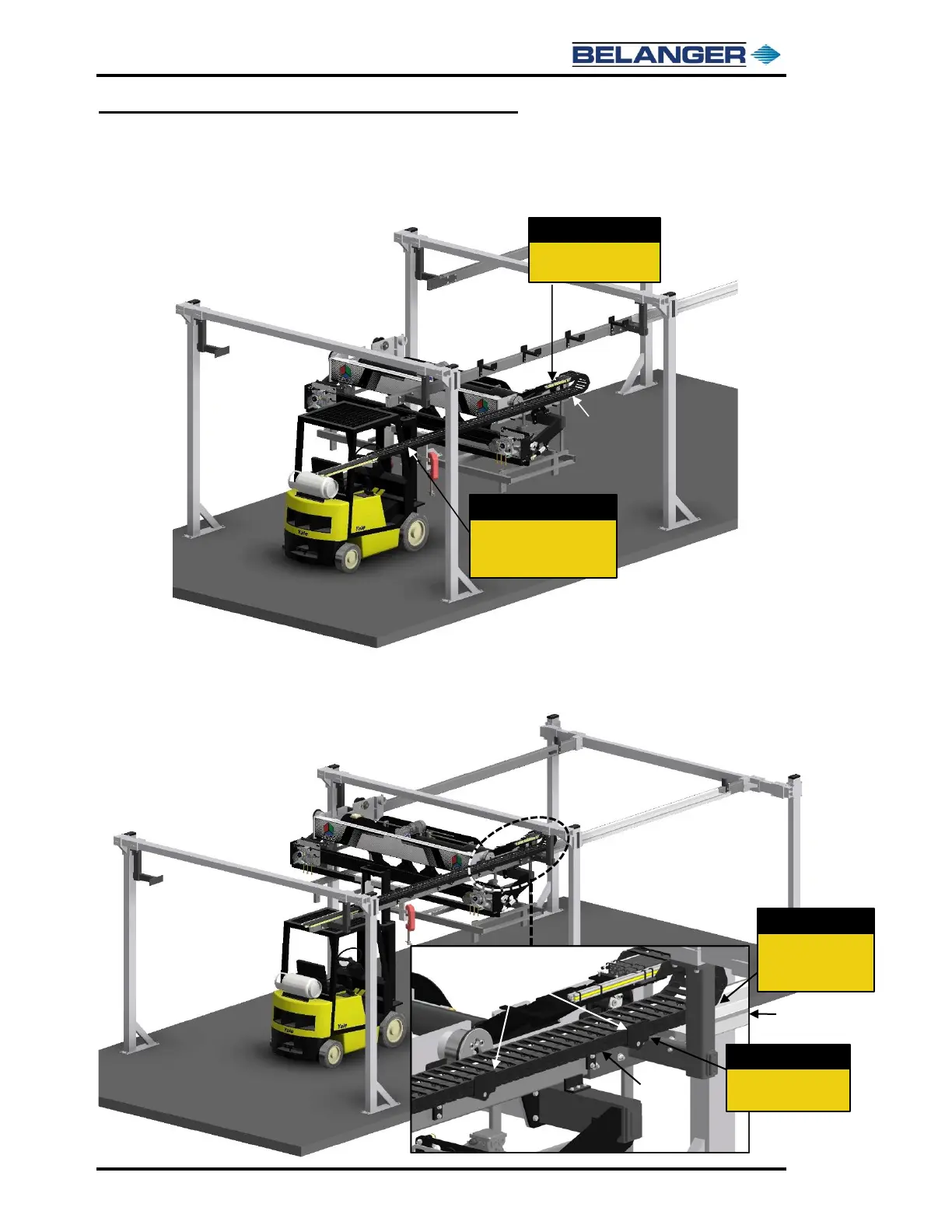

6) Unroll the Cable Carrier, as shown below, before raising the Carriage up to load onto the Exit
Rails. One end of the Cable Carrier has already been secured to the CAT Carriage Weldment
on the Carriage Head.
7) Raise the Carriage up and align the Cable Carrier with the CAT Track Trough. Once the
Cable Carrier is square with the Trough, the person holding the Cable Carrier can lay the
Carrier on top of the CAT Track Supports.
Cable
Carrier
Unroll the Cable Carrier
before raising the Carriage
to load onto the Exit Rails.
Step 6a:
Cable Carrier attached
to Carriage Weldment.
Step 6b:
Entrance
Raise Carriage up
and align Cable
Carrier with Trough.
Step 7a:
CAT Track
Supports (4)
Trough
Lay Cable Carrier on
top of Track
Supports.
Step 7b:
Cable
Carrier
Entrance
Exit
